TP2520N8-G

TP2520N8-G Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of SMD/SMT. SOT-89-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 200 V 260 mA continuous drain current Rds On value of 12 Ohms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 1.6 W This product has a Single configuration. The Channel Mode is set to Enhancement. Reel packaging for easy dispensing The height of the product is 1.6 mm. 4.6 mm long MOSFET Small Signal The Transistor Type is 1 P-Channel. This device belongs to the FET type. Microchip Technology is a trusted brand for quality electronics 15 ns fall time MOSFET product type Rise Time is 15 ns. 2000 of 100 MOSFETs as subcategory Turn-off delay time is 20 ns. The typical turn-on delay time is 10 ns. 1. 0.001862 oz of Unit Weight

TP2520N8-G Image

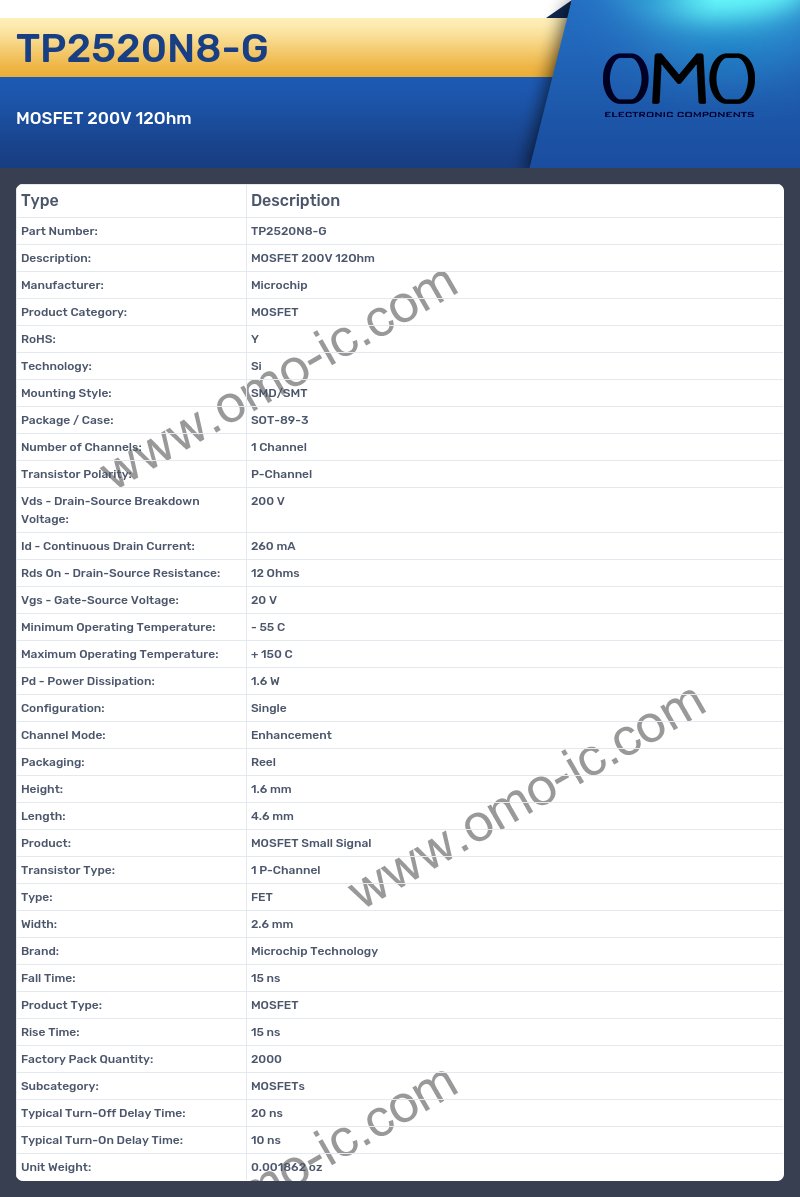

TP2520N8-G Specifications

• Manufacturer: Microchip
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: SOT-89-3
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 200 V
• Id - Continuous Drain Current: 260 mA
• Rds On - Drain-Source Resistance: 12 Ohms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 1.6 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Reel
• Height: 1.6 mm
• Length: 4.6 mm
• Product: MOSFET Small Signal
• Transistor Type: 1 P-Channel
• Type: FET
• Width: 2.6 mm
• Brand: Microchip Technology
• Fall Time: 15 ns
• Product Type: MOSFET
• Rise Time: 15 ns
• Factory Pack Quantity: 2000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 20 ns
• Typical Turn-On Delay Time: 10 ns
• Unit Weight: 0.001862 oz
