TSC103IYDT

TSC103IYDT Overview

This product is manufactured by STMicroelectronics. This product is equipped with 1 Channel for efficient performance. This product has a 105 dB of 50 dB, ensuring reliable signal acquisition. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. The AEC-Q100 Qualification The accuracy of this product is 2.5 %. The amplifier type is Current Sense. Common Mode input type Current Sense Amplifiers STMicroelectronics is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Bandwidth at -3 dB is 700 kHz Gain ratio is 20 V/V, 25 V/V, 50 V/V, 100 V/V. Yes regarding Moisture Sensitivity Current Sense Amplifiers product type 2500 of 100 Amplifier ICs as subcategory 1. 0.017870 oz of Unit Weight

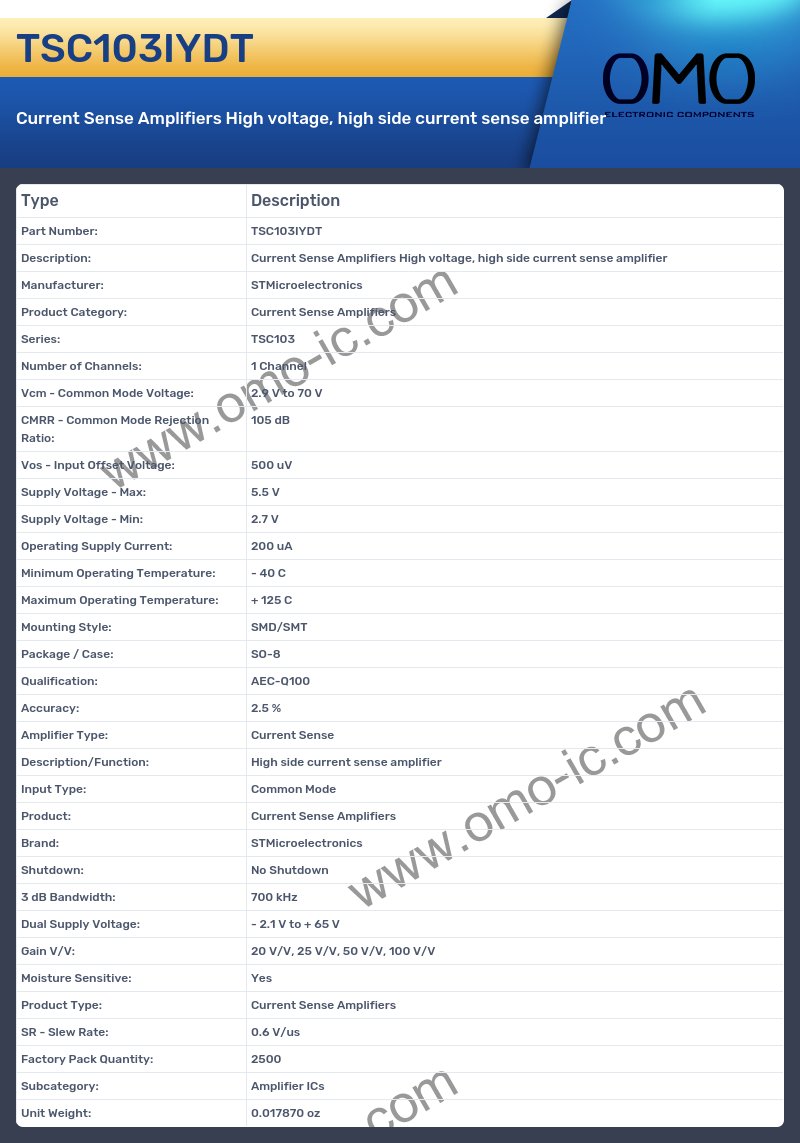

TSC103IYDT Image

TSC103IYDT Specifications

• Manufacturer: STMicroelectronics
• Product Category: Current Sense Amplifiers
• Series: TSC103
• Number of Channels: 1 Channel
• Vcm - Common Mode Voltage: 2.9 V to 70 V
• CMRR - Common Mode Rejection Ratio: 105 dB
• Vos - Input Offset Voltage: 500 uV
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Operating Supply Current: 200 uA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Qualification: AEC-Q100
• Accuracy: 2.5 %
• Amplifier Type: Current Sense
• Description/Function: High side current sense amplifier
• Input Type: Common Mode
• Product: Current Sense Amplifiers
• Brand: STMicroelectronics
• Shutdown: No Shutdown
• 3 dB Bandwidth: 700 kHz
• Dual Supply Voltage: - 2.1 V to + 65 V
• Gain V/V: 20 V/V, 25 V/V, 50 V/V, 100 V/V
• Moisture Sensitive: Yes
• Product Type: Current Sense Amplifiers
• SR - Slew Rate: 0.6 V/us
• Factory Pack Quantity: 2500
• Subcategory: Amplifier ICs
• Unit Weight: 0.017870 oz
