UC3861DW

UC3861DW Overview

This product is manufactured by Texas Instruments. Full-Bridge, Half-Bridge, Push-Pull Topology 2 Output is the number of outputs provided by this product. 1 MHz is 60 kHz. - 400 mV to + 7 V Input Voltage Output Voltage is 5 V Output current: 1 A The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 2.35 mm. 10.28 mm long Switching Controllers This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 25 ns fall time Yes regarding Moisture Sensitivity 22 V operating supply voltage range Switching Controllers product type Rise Time is 25 ns. 40 of 100 PMIC - Power Management ICs as subcategory 1. 0.016709 oz of Unit Weight

UC3861DW Image

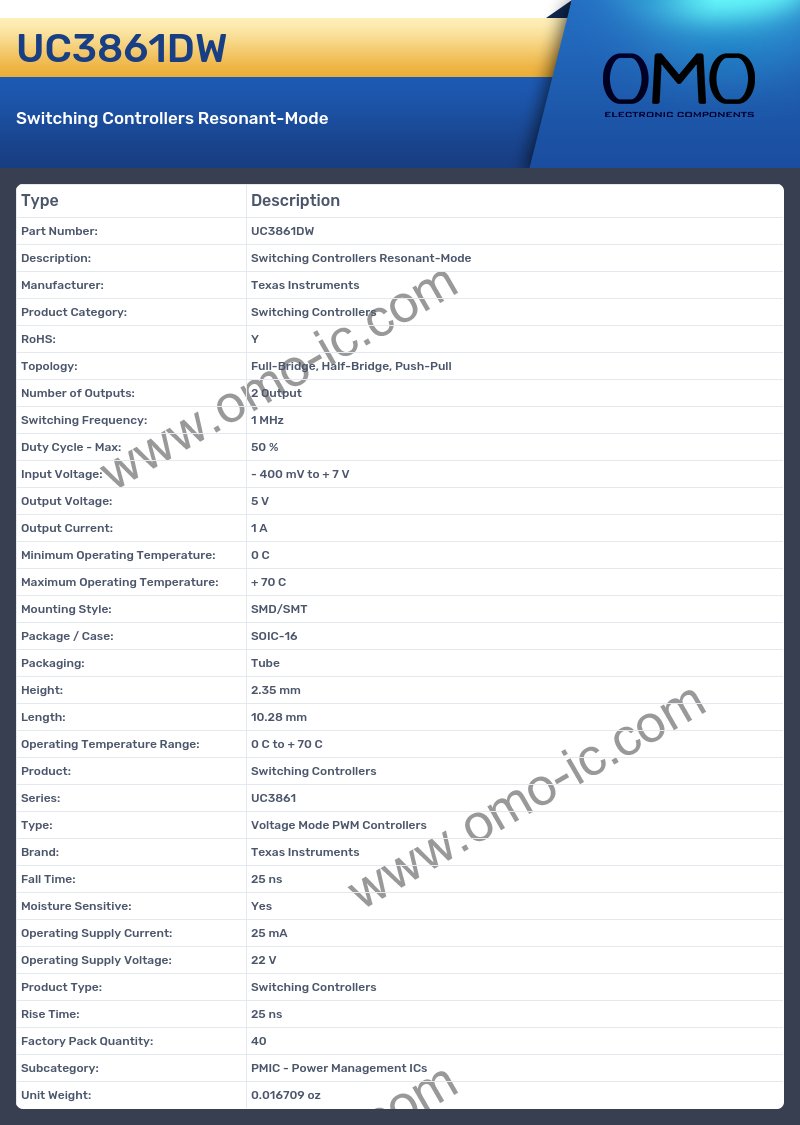

UC3861DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Full-Bridge, Half-Bridge, Push-Pull
• Number of Outputs: 2 Output
• Switching Frequency: 1 MHz
• Duty Cycle - Max: 50 %
• Input Voltage: - 400 mV to + 7 V
• Output Voltage: 5 V
• Output Current: 1 A
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Height: 2.35 mm
• Length: 10.28 mm
• Operating Temperature Range: 0 C to + 70 C
• Product: Switching Controllers
• Series: UC3861
• Type: Voltage Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 25 ns
• Moisture Sensitive: Yes
• Operating Supply Current: 25 mA
• Operating Supply Voltage: 22 V
• Product Type: Switching Controllers
• Rise Time: 25 ns
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.016709 oz
