UCC3580D-4

UCC3580D-4 Overview

This product is manufactured by Texas Instruments. Boost, Buck, Flyback, Forward Topology 2 Output is the number of outputs provided by this product. 430 kHz is 60 kHz. Output current: 1.2 A The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.58 mm. Non-Isolated is the isolation property. 9.9 mm long Switching Controllers This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. 20 ns, 20 ns fall time 15 V operating supply voltage range Switching Controllers product type Rise Time is 20 ns, 40 ns. 40 of 100 PMIC - Power Management ICs as subcategory 1. 0.004998 oz of Unit Weight

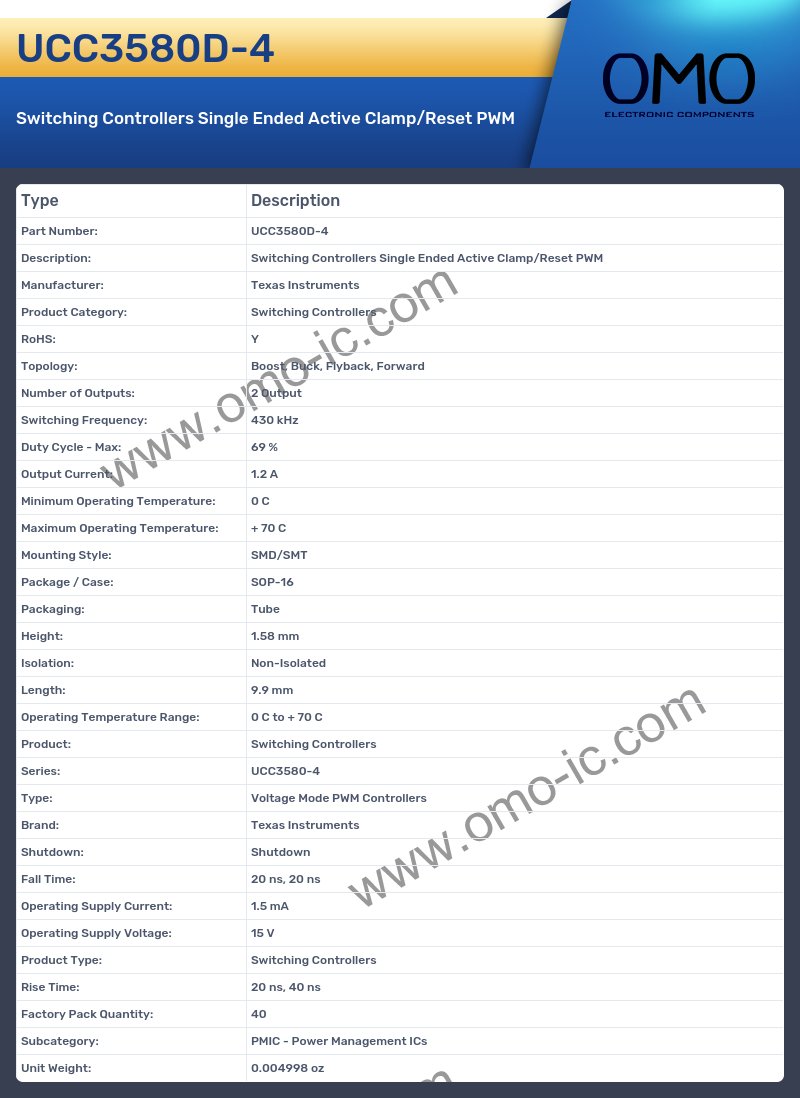

UCC3580D-4 Image

UCC3580D-4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Buck, Flyback, Forward
• Number of Outputs: 2 Output
• Switching Frequency: 430 kHz
• Duty Cycle - Max: 69 %
• Output Current: 1.2 A
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Height: 1.58 mm
• Isolation: Non-Isolated
• Length: 9.9 mm
• Operating Temperature Range: 0 C to + 70 C
• Product: Switching Controllers
• Series: UCC3580-4
• Type: Voltage Mode PWM Controllers
• Brand: Texas Instruments
• Shutdown: Shutdown
• Fall Time: 20 ns, 20 ns
• Operating Supply Current: 1.5 mA
• Operating Supply Voltage: 15 V
• Product Type: Switching Controllers
• Rise Time: 20 ns, 40 ns
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.004998 oz
