UCC3809P-2

UCC3809P-2 Overview

This product is manufactured by Texas Instruments. Boost, Buck, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 1000 kHz is 60 kHz. Output current: 800 mA The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. VSSOP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 0.97 mm. 3 mm long This device belongs to the Economy Primary Side PWM Controller type. Texas Instruments is a trusted brand for quality electronics Yes regarding Moisture Sensitivity Switching Controllers product type 80 of 100 PMIC - Power Management ICs as subcategory 1. 0.000917 oz of Unit Weight

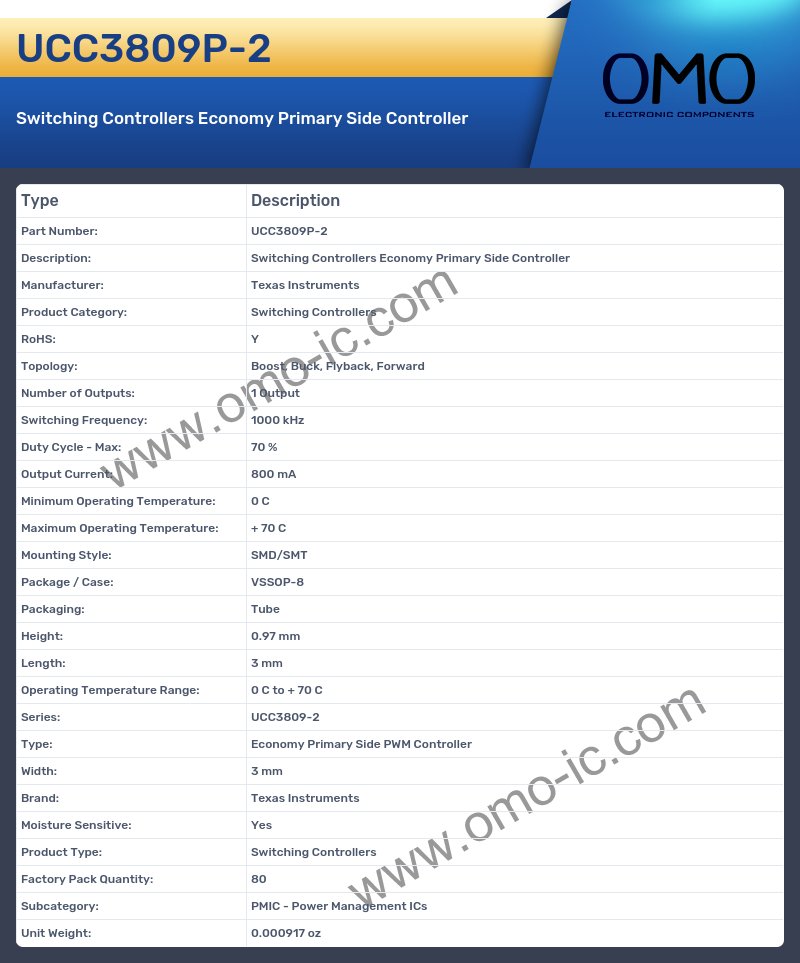

UCC3809P-2 Image

UCC3809P-2 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Buck, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 1000 kHz
• Duty Cycle - Max: 70 %
• Output Current: 800 mA
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: VSSOP-8
• Packaging: Tube
• Height: 0.97 mm
• Length: 3 mm
• Operating Temperature Range: 0 C to + 70 C
• Series: UCC3809-2
• Type: Economy Primary Side PWM Controller
• Width: 3 mm
• Brand: Texas Instruments
• Moisture Sensitive: Yes
• Product Type: Switching Controllers
• Factory Pack Quantity: 80
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.000917 oz
