ACS108-8SUN-TR

ACS108-8SUN-TR Overview

Product belongs to the ACS/A.S.DR series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 3-SMB, Flat Lead Surface Mount mounting type Supplier device package: SMBflat-3L Configuration Single 10mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1V 10mA of Current-Gate-Trigger-Igt-Max 450mA is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 13A, 13.7A for 50-60Hz Itsm. Logic - Sensitive Gate Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 30 C The 800 V Rated Repetitive Off-State Voltage VDRM; 10 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1 V on this product. Gate-Trigger-Current-Igt: 10 mA; 800 mA RMS Current On-State 13.7 A Non-Repetitive On-State Current The 2 uA Off-State Leakage Current in VDRM and IDRM. The 1.3 V On-State-Voltage

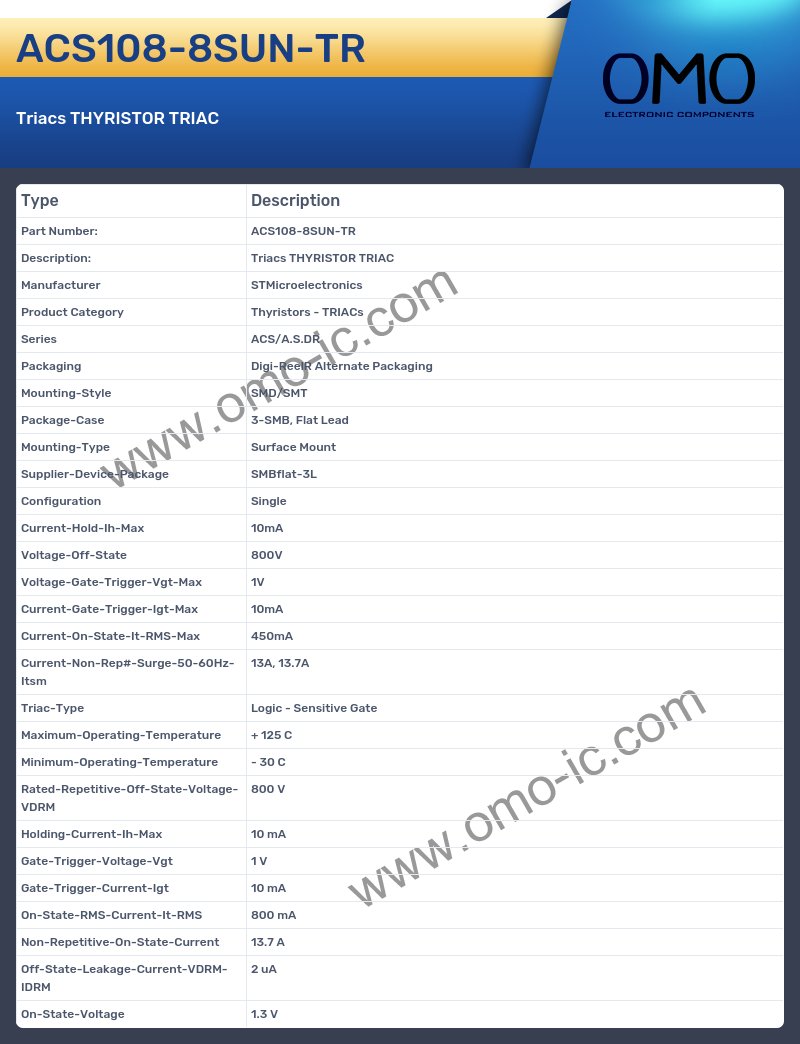

ACS108-8SUN-TR Image

ACS108-8SUN-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - TRIACs
• Series ACS/A.S.DR
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 3-SMB, Flat Lead
• Mounting-Type Surface Mount
• Supplier-Device-Package SMBflat-3L
• Configuration Single
• Current-Hold-Ih-Max 10mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1V
• Current-Gate-Trigger-Igt-Max 10mA
• Current-On-State-It-RMS-Max 450mA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 13A, 13.7A
• Triac-Type Logic - Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 30 C
• Rated-Repetitive-Off-State-Voltage-VDRM 800 V
• Holding-Current-Ih-Max 10 mA
• Gate-Trigger-Voltage-Vgt 1 V
• Gate-Trigger-Current-Igt 10 mA
• On-State-RMS-Current-It-RMS 800 mA
• Non-Repetitive-On-State-Current 13.7 A
• Off-State-Leakage-Current-VDRM-IDRM 2 uA
• On-State-Voltage 1.3 V
