ADS5413IPHP

ADS5413IPHP Overview

Product belongs to the ADS5413 series. This product is categorized as Analog to Digital Converters Tray is the packaging method for this product Weight of 0.004744 oz SMD/SMT Mounting-Style HTQFP-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 1 Channel Supplier device package: 48-HTQFP (7x7) This product's 65M. Data-Interface: Parallel 11 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 480 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel Serial SPI interface type Signal-to-Noise Ratio of 68.5 dB The ADS5413EVM. Number-of-Converters: 1 Converter 65 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 1.6 V to 3.3 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: - 0.9 /1 LSB

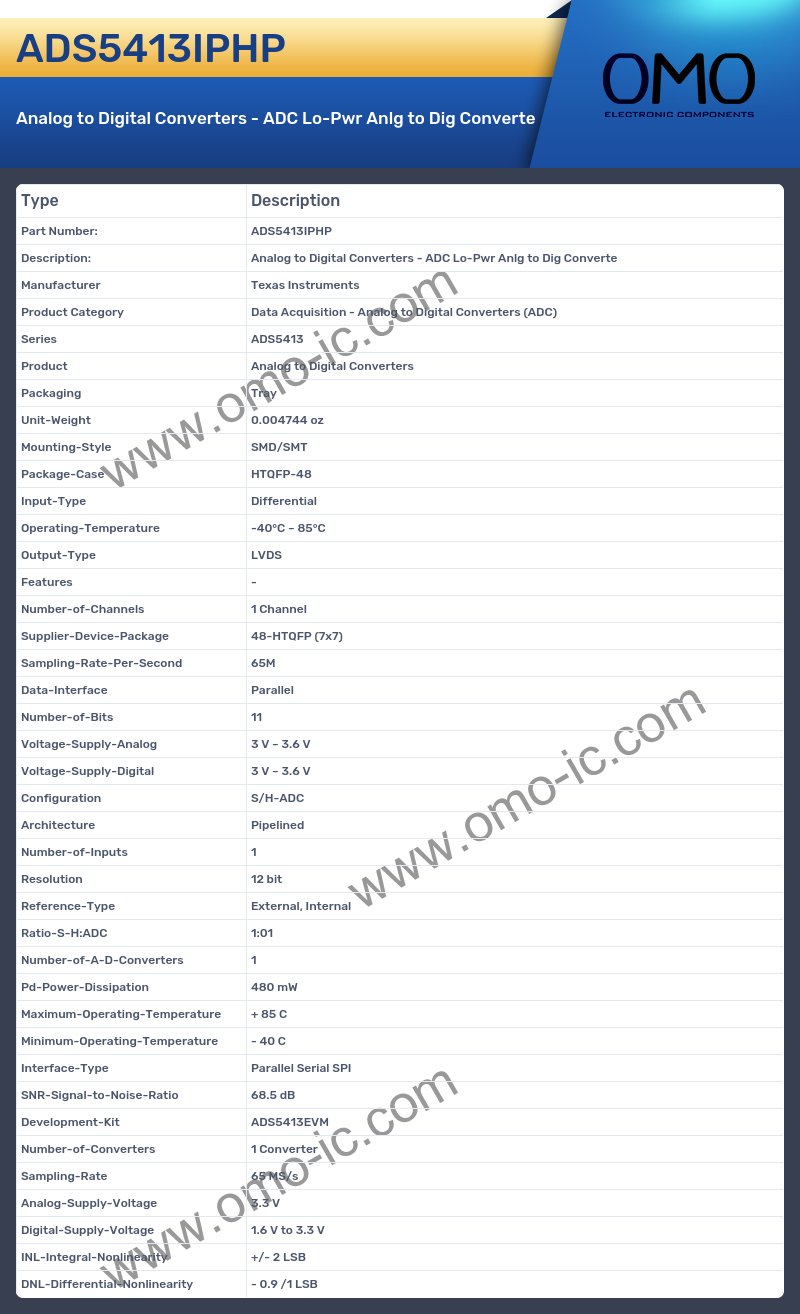

ADS5413IPHP Image

ADS5413IPHP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5413
• Product Analog to Digital Converters
• Packaging Tray
• Unit-Weight 0.004744 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-HTQFP (7x7)
• Sampling-Rate-Per-Second 65M
• Data-Interface Parallel
• Number-of-Bits 11
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 480 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel Serial SPI
• SNR-Signal-to-Noise-Ratio 68.5 dB
• Development-Kit ADS5413EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 65 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 1.6 V to 3.3 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity - 0.9 /1 LSB
