ADS5553IPFPR

ADS5553IPFPR Overview

Product belongs to the ADS5553 series. This product is categorized as Analog to Digital Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.012984 oz SMD/SMT Mounting-Style HTQFP-80 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 80-HTQFP (12x12) This product's 65M. Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 2 units Power-off control: 820 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 74.4 dB The ADS5553EVM. Number-of-Converters: 2 Converter 65 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3 V to 3.6 V Integral Nonlinearity: +/- 4 LSB Differential nonlinearity: - 0.95 /1 LSB

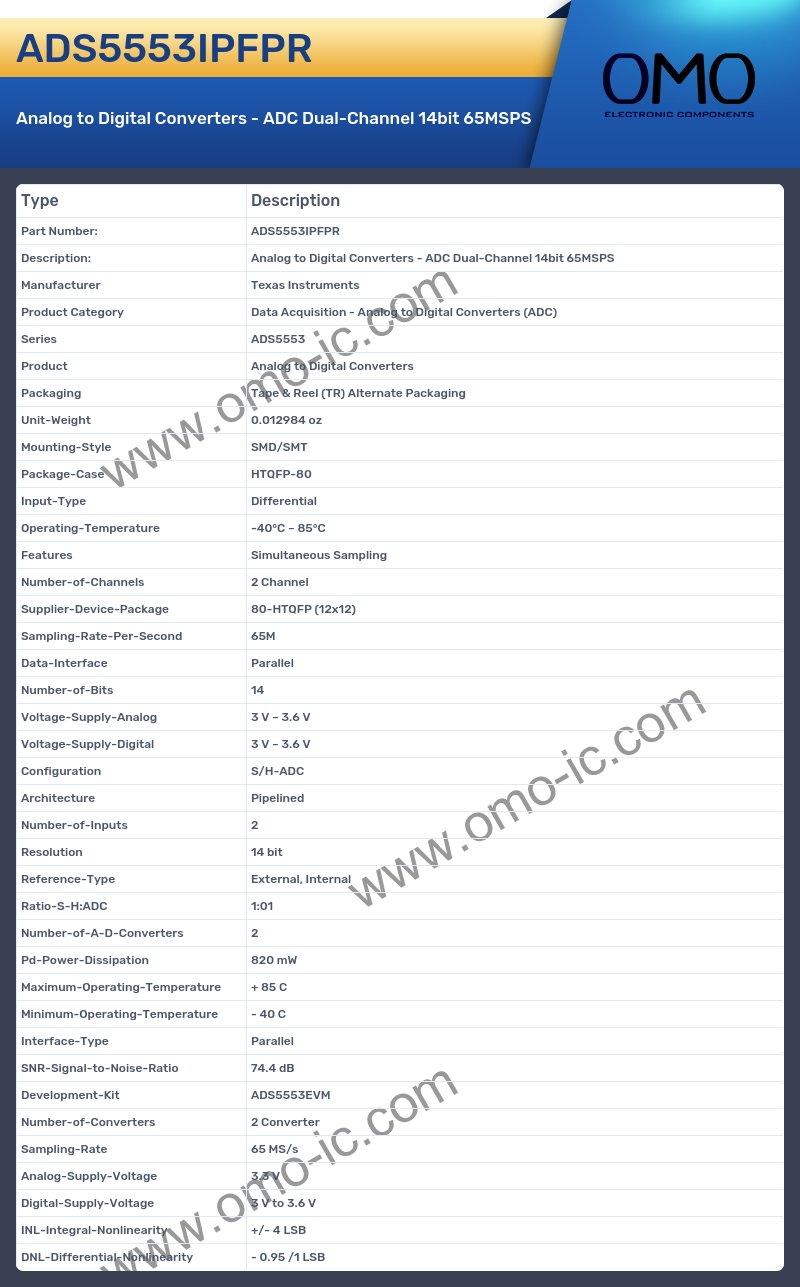

ADS5553IPFPR Image

ADS5553IPFPR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5553
• Product Analog to Digital Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.012984 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-80
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel
• Supplier-Device-Package 80-HTQFP (12x12)
• Sampling-Rate-Per-Second 65M
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 3 V ~ 3.6 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 2
• Resolution 14 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 820 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 74.4 dB
• Development-Kit ADS5553EVM
• Number-of-Converters 2 Converter
• Sampling-Rate 65 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 3 V to 3.6 V
• INL-Integral-Nonlinearity +/- 4 LSB
• DNL-Differential-Nonlinearity - 0.95 /1 LSB
