ADS7806PG4

ADS7806PG4 Overview

Product belongs to the - series. Tube is the packaging method for this product 28-DIP (0.300", 7.62mm) The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Supplier device package: 28-PDIP This product's 40k. Data-Interface: SPI, Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units

ADS7806PG4 Image

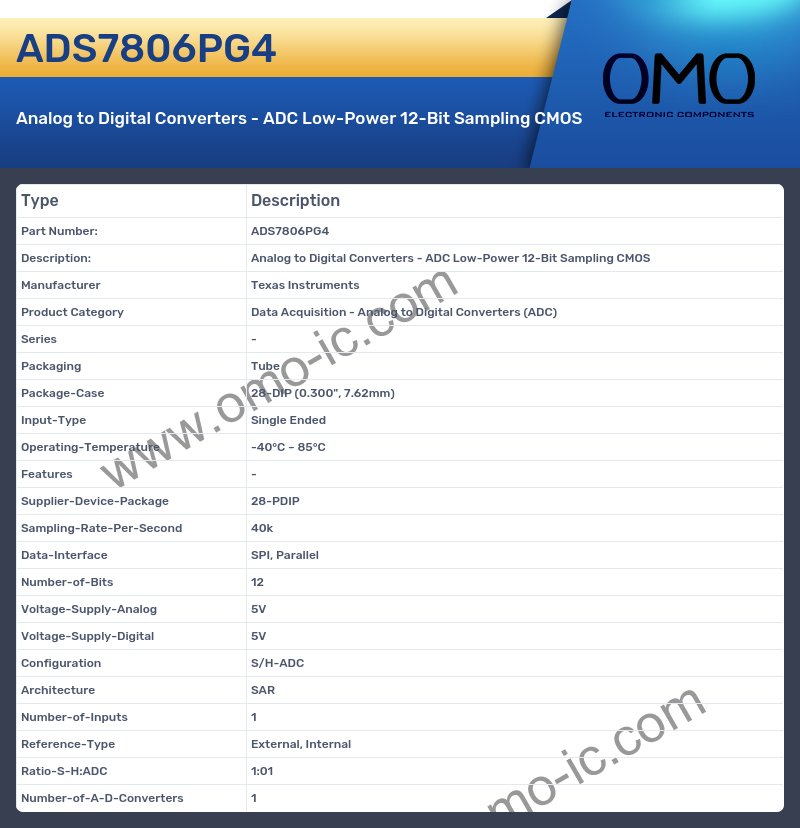

ADS7806PG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Packaging Tube
• Package-Case 28-DIP (0.300", 7.62mm)
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Supplier-Device-Package 28-PDIP
• Sampling-Rate-Per-Second 40k
• Data-Interface SPI, Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
