ADS7828E/2K5 Overview

Product belongs to the ADS7828 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002183 oz SMD/SMT Mounting-Style TSSOP-16 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel/8 Channel Supplier device package: 16-TSSOP This product's 50k. Data-Interface: I2C 12 bits The Voltage-Supply-Analog is 2.7 V ~ 3.6 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V, 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 2-Wire I2C interface type Signal-to-Noise Ratio of 72 dB The ADS7823-28EVM. Number-of-Converters: 1 Converter 50 kS/s Sampling Rate Analog supply voltage: 2.7 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 1 LSB

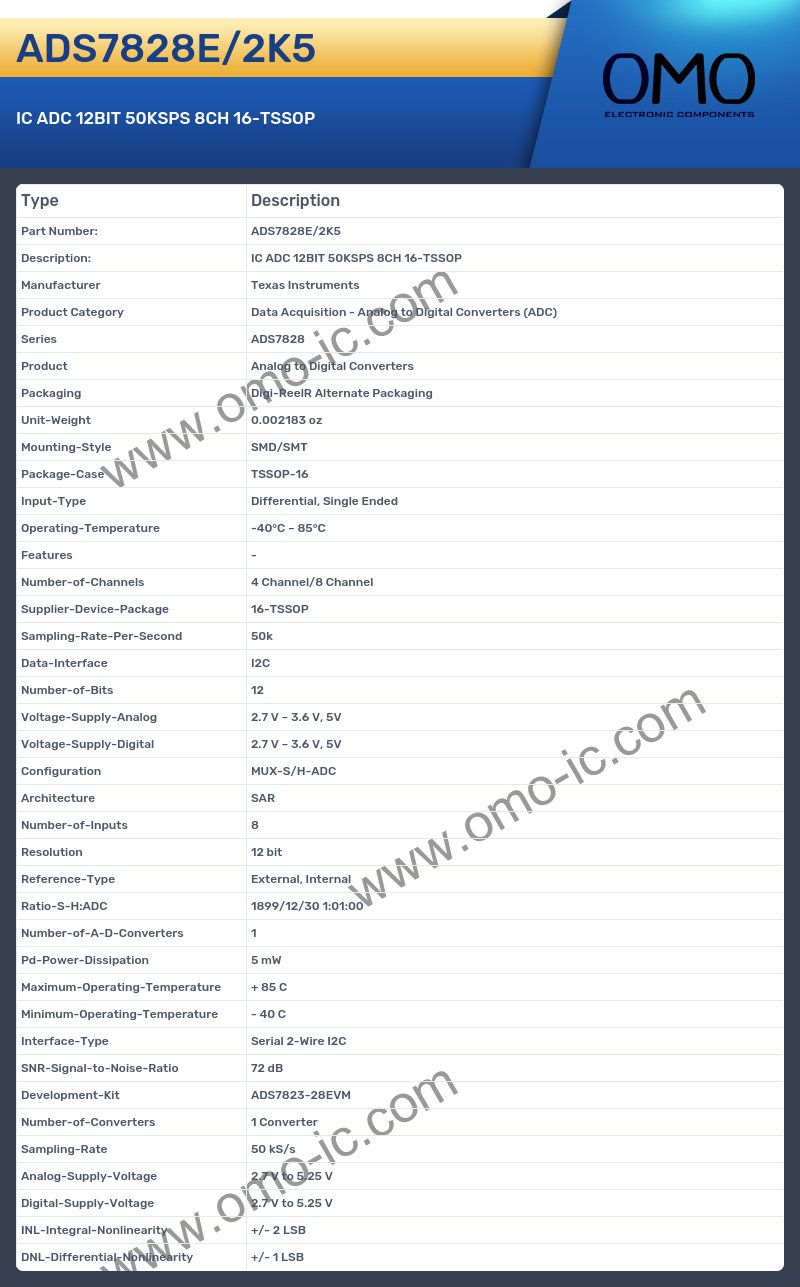

ADS7828E/2K5 Image

ADS7828E/2K5 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS7828
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002183 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 4 Channel/8 Channel
• Supplier-Device-Package 16-TSSOP
• Sampling-Rate-Per-Second 50k
• Data-Interface I2C
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 3.6 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V, 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 8
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire I2C
• SNR-Signal-to-Noise-Ratio 72 dB
• Development-Kit ADS7823-28EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 50 kS/s
• Analog-Supply-Voltage 2.7 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
