ADS7948SRTER Overview

Product belongs to the ADS7948 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WQFN-16 The Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Channel Supplier device package: 16-WQFN (3x3) This product's 2M. Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 1.65 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Signal-to-Noise Ratio of 61 dB 2 MS/s Sampling Rate Analog supply voltage: 2.7 V to 5.5 V Digital Supply Voltage: 1.65 V to 5.5 V Integral Nonlinearity: 0.0488 %

ADS7948SRTER Image

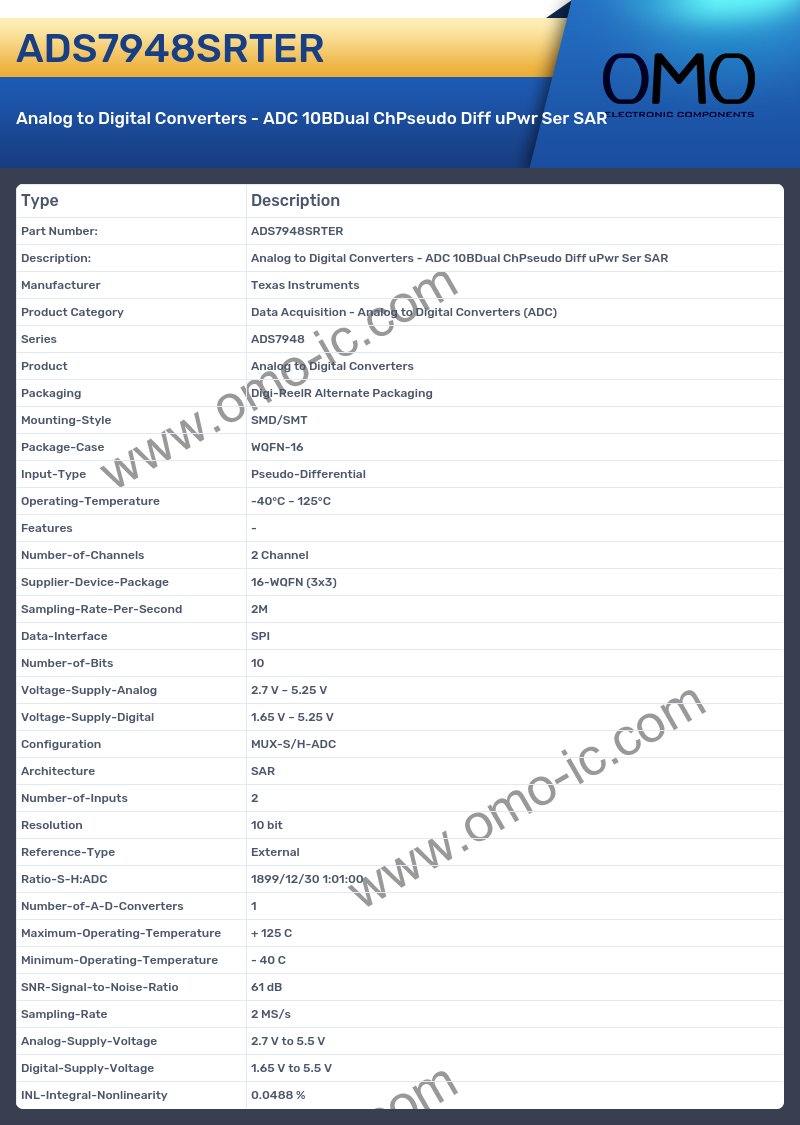

ADS7948SRTER Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS7948
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WQFN-16
• Input-Type Pseudo-Differential
• Operating-Temperature -40°C ~ 125°C
• Features -
• Number-of-Channels 2 Channel
• Supplier-Device-Package 16-WQFN (3x3)
• Sampling-Rate-Per-Second 2M
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 1.65 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 2
• Resolution 10 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• SNR-Signal-to-Noise-Ratio 61 dB
• Sampling-Rate 2 MS/s
• Analog-Supply-Voltage 2.7 V to 5.5 V
• Digital-Supply-Voltage 1.65 V to 5.5 V
• INL-Integral-Nonlinearity 0.0488 %
