ADS803E

ADS803E Overview

Product belongs to the ADS803 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.008529 oz SMD/SMT Mounting-Style SSOP-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SSOP This product's 5M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 135 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 69 dB Number-of-Converters: 1 Converter 5 MS/s Sampling Rate Analog supply voltage: 4.7 V to 5.3 V Digital Supply Voltage: 4.7 V to 5.3 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 0.75 LSB

ADS803E Image

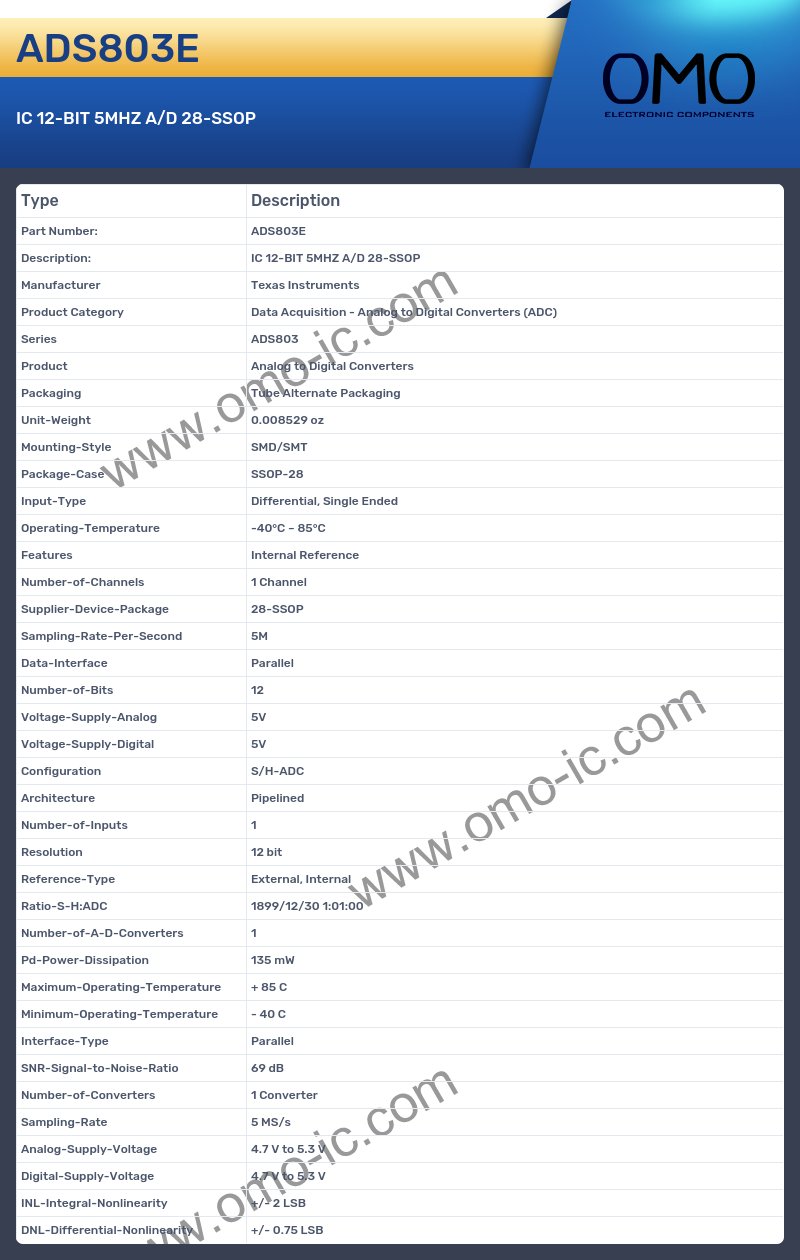

ADS803E Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS803
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.008529 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SSOP
• Sampling-Rate-Per-Second 5M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 135 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 69 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 5 MS/s
• Analog-Supply-Voltage 4.7 V to 5.3 V
• Digital-Supply-Voltage 4.7 V to 5.3 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 0.75 LSB
