ADS823E Overview

Product belongs to the ADS823 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.008529 oz SMD/SMT Mounting-Style SSOP-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SSOP This product's 60M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 350 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 60 dB The DEM-ADS823E. Number-of-Converters: 1 Converter 60 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 3 V to 5 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 1 LSB

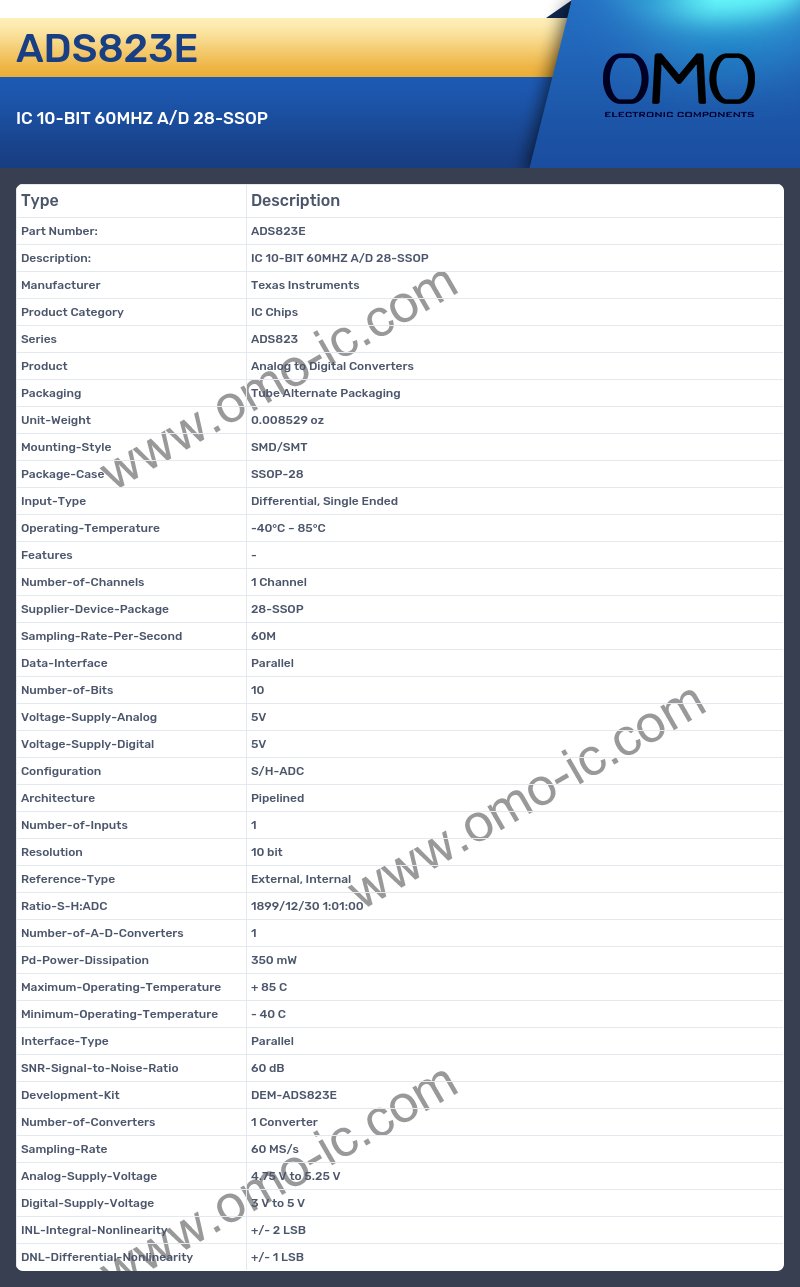

ADS823E Image

ADS823E Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series ADS823
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.008529 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SSOP
• Sampling-Rate-Per-Second 60M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 350 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 60 dB
• Development-Kit DEM-ADS823E
• Number-of-Converters 1 Converter
• Sampling-Rate 60 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 3 V to 5 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
