ADS900E

ADS900E Overview

Product belongs to the SpeedPlus series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.007351 oz SMD/SMT Mounting-Style SSOP-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SSOP This product's 20M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 2.7 V ~ 3.7 V. The Voltage Supply Digital for this product is 2.7 V ~ 3.7 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 66 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 49 dB Number-of-Converters: 1 Converter 20 MS/s Sampling Rate Analog supply voltage: 2.7 V to 3.7 V Digital Supply Voltage: 2.7 V to 3.7 V Integral Nonlinearity: +/- 3.5 LSB Differential nonlinearity: +/- 1 LSB

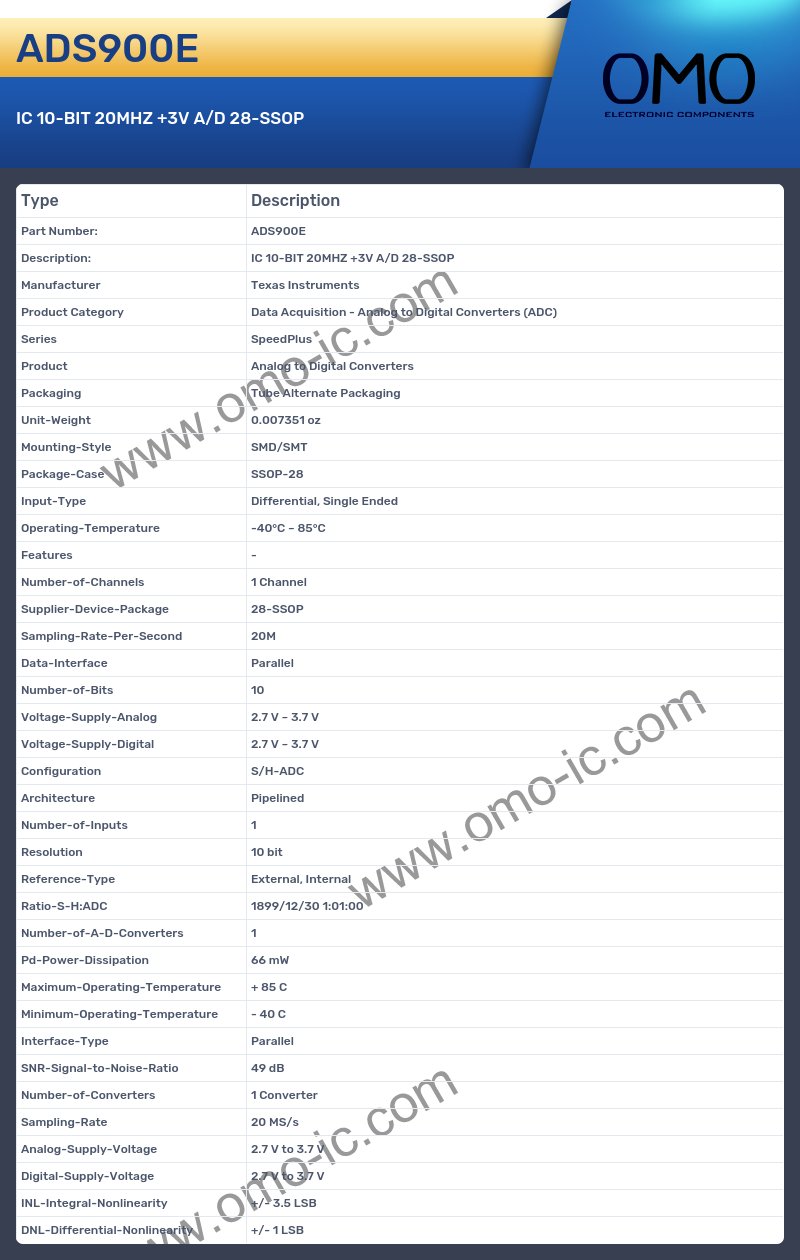

ADS900E Image

ADS900E Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series SpeedPlus
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007351 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SSOP
• Sampling-Rate-Per-Second 20M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 3.7 V
• Voltage-Supply-Digital 2.7 V ~ 3.7 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 66 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 49 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 20 MS/s
• Analog-Supply-Voltage 2.7 V to 3.7 V
• Digital-Supply-Voltage 2.7 V to 3.7 V
• INL-Integral-Nonlinearity +/- 3.5 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
