BAL-CW1250D3 Overview

Product belongs to the BAL-CW1250D3 series. This product is categorized as Baluns Type: Balun Transformer With Integrate Matching Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' Solder ' for easy integration into your design. Wide - 30 C to + 150 C operating temperature range for diverse applications 1.2 mm x 0.99 mm This product's 2500 MHz range is 0Hz to 2.2GHz. Impedance value is 50 Ohms Surface Mount mounting type Frequency Bandwidth: 2.4GHz ~ 2.5GHz 2500 MHz bandwidth 50 / - Ohm Impedance with Unbalanced and Balanced configuration Limit of phase-difference of 10° 1. Maximum Insertion Loss of 0.97dB; The specified Return-Loss-Min is 21dB.

BAL-CW1250D3 Image

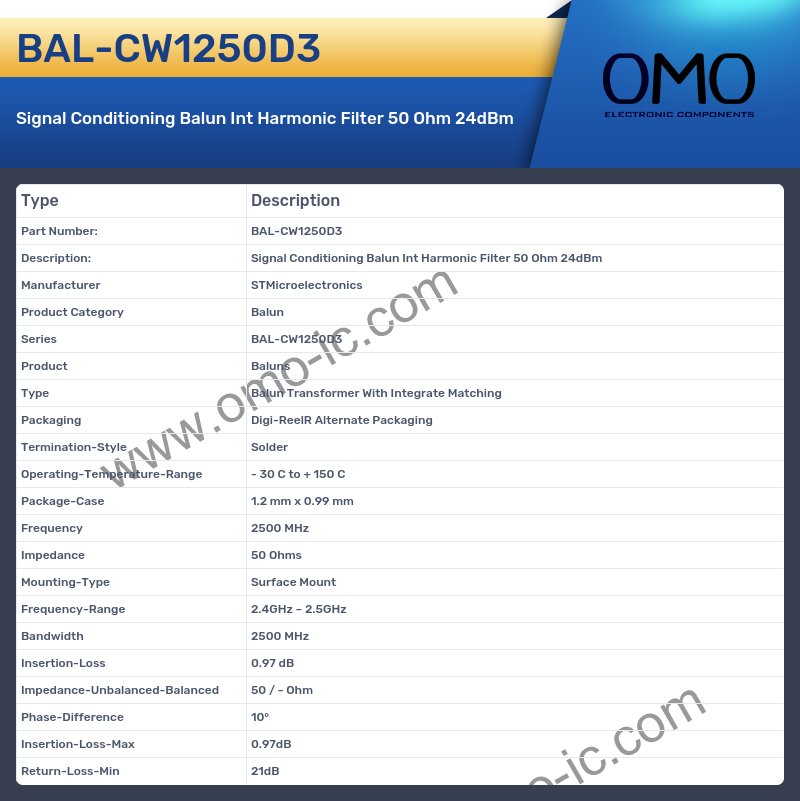

BAL-CW1250D3 Specifications

• Manufacturer STMicroelectronics
• Product Category Balun
• Series BAL-CW1250D3
• Product Baluns
• Type Balun Transformer With Integrate Matching
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style Solder
• Operating-Temperature-Range - 30 C to + 150 C
• Package-Case 1.2 mm x 0.99 mm
• Frequency 2500 MHz
• Impedance 50 Ohms
• Mounting-Type Surface Mount
• Frequency-Range 2.4GHz ~ 2.5GHz
• Bandwidth 2500 MHz
• Insertion-Loss 0.97 dB
• Impedance-Unbalanced-Balanced 50 / - Ohm
• Phase-Difference 10°
• Insertion-Loss-Max 0.97dB
• Return-Loss-Min 21dB
