BAL-NRF01D3

BAL-NRF01D3 Overview

Product belongs to the BAL-NRF01D3 series. This product is categorized as Baluns Type: Ultraminiature Balun Integrated Matching Network and Harmonic Filter Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. SMD/SMT Mounting Wide - 40 C to + 85 C operating temperature range for diverse applications FlipChip-5 This product's 2.4 GHz range is 0Hz to 2.2GHz. Impedance value is 50 Ohms Surface Mount mounting type Frequency Bandwidth: 2.4GHz ~ 2.54GHz 50 / - Ohm Impedance with Unbalanced and Balanced configuration Limit of phase-difference of 3° 1. Maximum Insertion Loss of 2.25dB; The specified Return-Loss-Min is 10dB.

BAL-NRF01D3 Image

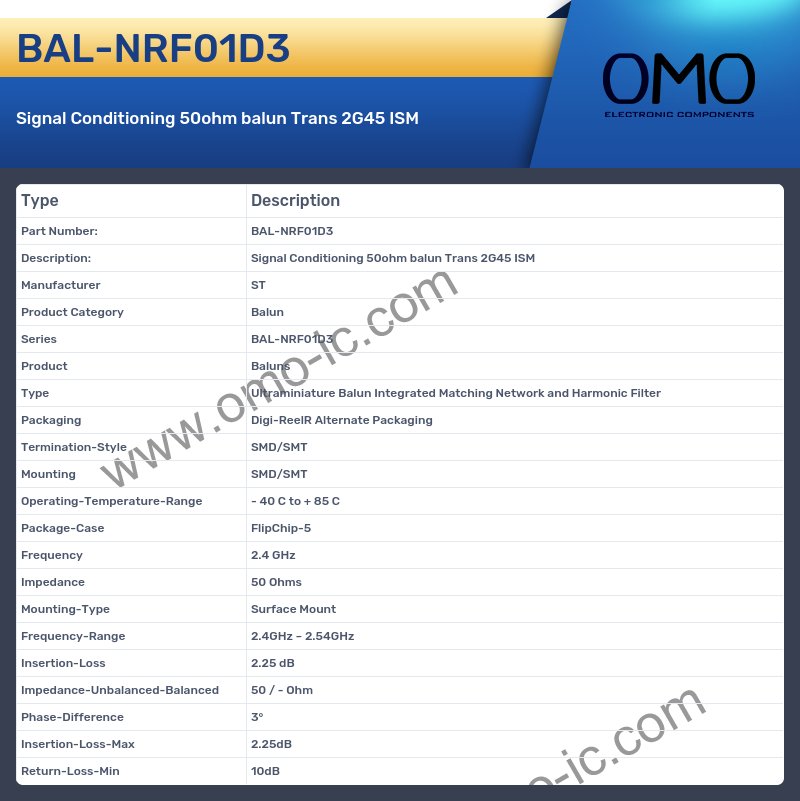

BAL-NRF01D3 Specifications

• Manufacturer ST
• Product Category Balun
• Series BAL-NRF01D3
• Product Baluns
• Type Ultraminiature Balun Integrated Matching Network and Harmonic Filter
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Mounting SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case FlipChip-5
• Frequency 2.4 GHz
• Impedance 50 Ohms
• Mounting-Type Surface Mount
• Frequency-Range 2.4GHz ~ 2.54GHz
• Insertion-Loss 2.25 dB
• Impedance-Unbalanced-Balanced 50 / - Ohm
• Phase-Difference 3°
• Insertion-Loss-Max 2.25dB
• Return-Loss-Min 10dB
