BALF-NRF01D3

BALF-NRF01D3 Overview

Product belongs to the series. This product is categorized as Baluns Type: Ultraminiature Balun Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Wide - 40 C to + 85 C operating temperature range for diverse applications FlipChip-5 This product's 2.45 GHz range is 0Hz to 2.2GHz. Impedance value is 50 Ohms Surface Mount mounting type Frequency Bandwidth: 2.4GHz ~ 2.5GHz 2400 MHz to 2540 MHz bandwidth 50 / 50 Ohm Impedance with Unbalanced and Balanced configuration Limit of phase-difference of 5° 1. Maximum Insertion Loss of 1.5dB; The specified Return-Loss-Min is -17.5dB.

BALF-NRF01D3 Image

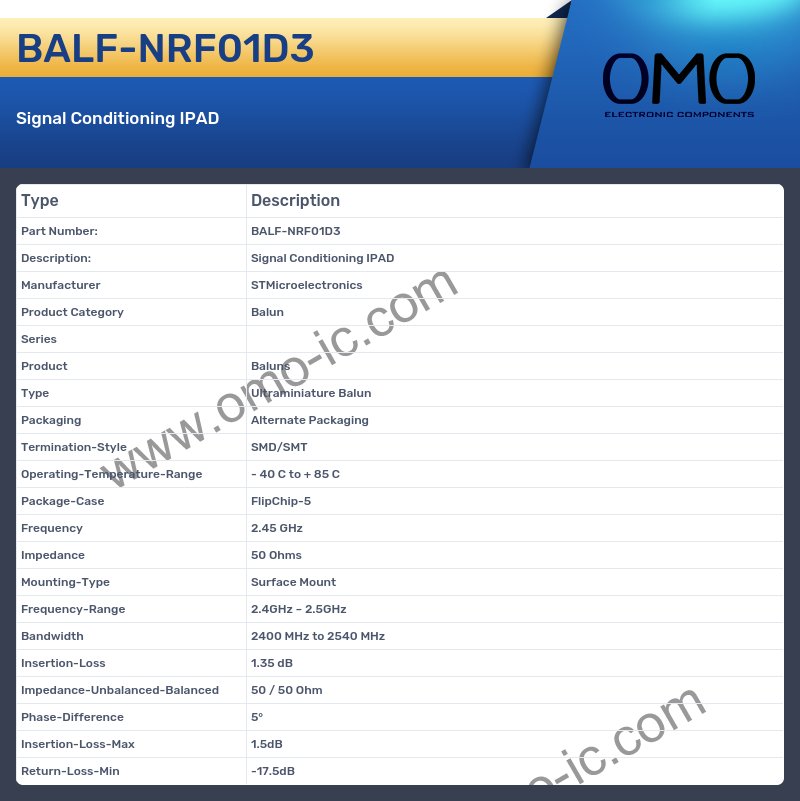

BALF-NRF01D3 Specifications

• Manufacturer STMicroelectronics
• Product Category Balun
• Series
• Product Baluns
• Type Ultraminiature Balun
• Packaging Alternate Packaging
• Termination-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case FlipChip-5
• Frequency 2.45 GHz
• Impedance 50 Ohms
• Mounting-Type Surface Mount
• Frequency-Range 2.4GHz ~ 2.5GHz
• Bandwidth 2400 MHz to 2540 MHz
• Insertion-Loss 1.35 dB
• Impedance-Unbalanced-Balanced 50 / 50 Ohm
• Phase-Difference 5°
• Insertion-Loss-Max 1.5dB
• Return-Loss-Min -17.5dB
