| Mfr. #: | BAT46 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | DIODE SCHOTTKY 100V 150MA DO35 |
| 生命周期: | 制造商新产品。 |
| 数据表: | BAT46 数据表 |
Product belongs to the BAT46 series. This product is categorized as Schottky Diodes Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.004833 oz Through Hole Mounting-Style DO-204AH, DO-35, Axial Si is the technology used. Through Hole mounting type Supplier device package: DO-35 Configuration Single Operating frequency: Small Signal = Schottky diode type The 5μA @ 75V Current-Reverse-Leakage-Vr 1. Vf Max 450mV @ 10mA is the Voltage-Forward; Maximum DC reverse voltage 100V The 150mA (DC) Current-Average-Rectified-Io; The capacitance value of this product is 10pF @ 0V, 1MHz for maximum efficiency. Operating-Temperature-Junction: -65°C ~ 125°C Maximum operating temperature of + 125 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1 V at 0.25 A Ir-Reverse-Current is 5 uA at 75 V. If-Forward-Current is 0.15 A. VRRM (100 V) Reverse Voltage 0.75 A IFSM Forward Surge Current
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

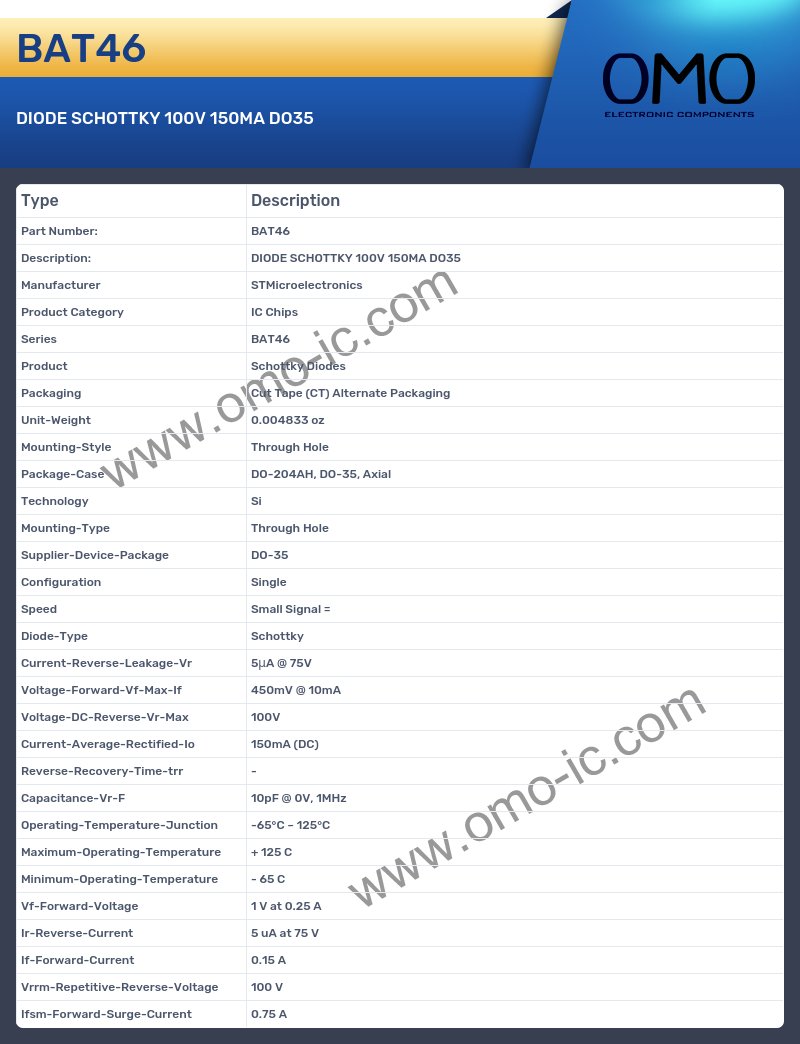

BAT46 Specifications
A: What is the Series of the product?
Q: The Series of the product is BAT46.
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Schottky Diodes
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Cut Tape (CT) Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.004833 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed DO-204AH, DO-35, Axial
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is DO-35.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: Is the cutoff frequency of the product Speed?
Q: Yes, the product's Speed is indeed Small Signal =
A: What is the Diode-Type of the product?
Q: The Diode-Type of the product is Schottky.
A: Is the cutoff frequency of the product Current-Reverse-Leakage-Vr?
Q: Yes, the product's Current-Reverse-Leakage-Vr is indeed 5μA @ 75V
A: What is the Voltage-Forward-Vf-Max-If of the product?
Q: The Voltage-Forward-Vf-Max-If of the product is 450mV @ 10mA.
A: What is the Voltage-DC-Reverse-Vr-Max of the product?
Q: The Voltage-DC-Reverse-Vr-Max of the product is 100V.
A: What is the Current-Average-Rectified-Io of the product?
Q: The Current-Average-Rectified-Io of the product is 150mA (DC).
A: What is the Capacitance-Vr-F of the product?
Q: The Capacitance-Vr-F of the product is 10pF @ 0V, 1MHz.
A: What is the Operating-Temperature-Junction of the product?
Q: The Operating-Temperature-Junction of the product is -65°C ~ 125°C.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 125 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 65 C.
A: What is the Vf-Forward-Voltage of the product?
Q: The Vf-Forward-Voltage of the product is 1 V at 0.25 A.
A: What is the Ir-Reverse-Current of the product?
Q: The Ir-Reverse-Current of the product is 5 uA at 75 V.
A: Is the cutoff frequency of the product If-Forward-Current?
Q: Yes, the product's If-Forward-Current is indeed 0.15 A
A: Is the cutoff frequency of the product Vrrm-Repetitive-Reverse-Voltage?
Q: Yes, the product's Vrrm-Repetitive-Reverse-Voltage is indeed 100 V
A: What is the Ifsm-Forward-Surge-Current of the product?
Q: The Ifsm-Forward-Surge-Current of the product is 0.75 A.
