| Mfr. #: | BD682 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | TRANS PNP DARL 100V 4A TO225AA |
| 生命周期: | 制造商新产品。 |
| 数据表: | BD682 数据表 |
Product belongs to the Darlingtons series. Tube is the packaging method for this product SMD/SMT Mounting-Style TO-225AA, TO-126-3 Through Hole mounting type Supplier device package: SOT-32-3 Configuration Single Transistor type: PNP - Darlington Maximum current collector Ic is 4A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 750 @ 1.5A, 3V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.5V @ 30mA, 1.5A Power-off control: 40 W Maximum operating temperature of + 150 C Rated VCEO up to 100 V The transistor polarity is PNP. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 4 A This product is capable of handling a 4 A continuous collector current. Minimum hfe for DC collector-base gain is 750. 200 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

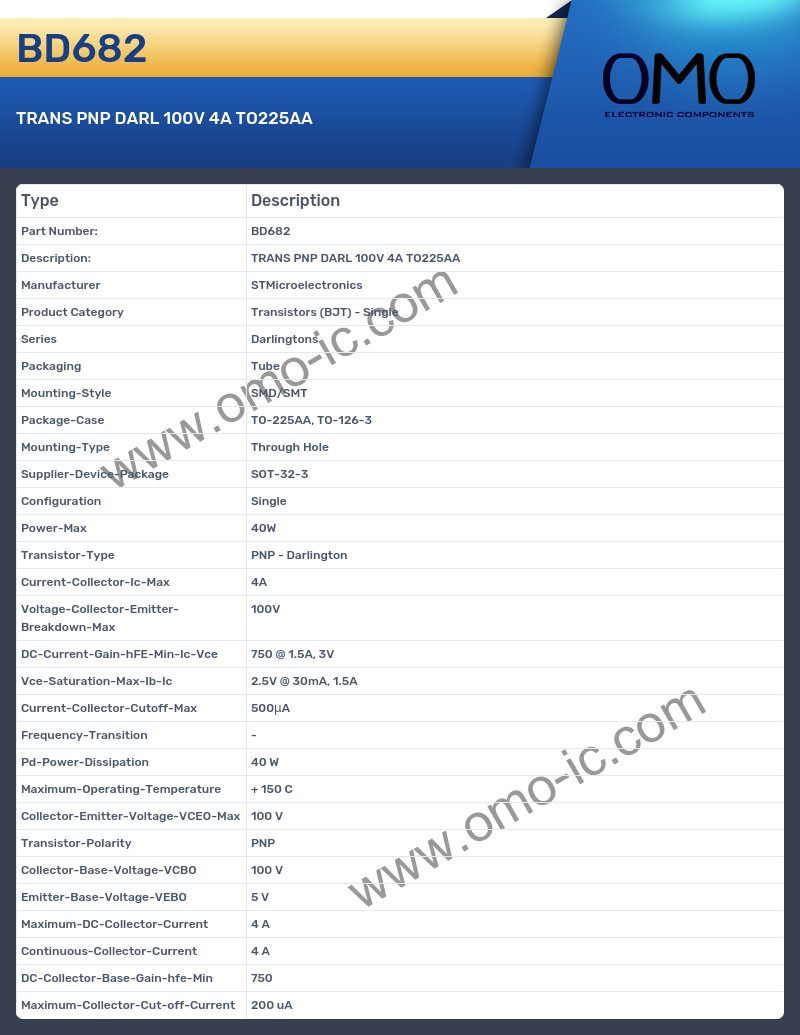

BD682 Specifications
A: At what frequency does the Series?
Q: The product Series is Darlingtons.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-225AA, TO-126-3.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed SOT-32-3
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is PNP - Darlington.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 4A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 100V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 750 @ 1.5A, 3V.
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 2.5V @ 30mA, 1.5A.
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 40 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Collector-Emitter-Voltage-VCEO-Max?
Q: Yes, the product's Collector-Emitter-Voltage-VCEO-Max is indeed 100 V
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is PNP.
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is 100 V.
A: Is the cutoff frequency of the product Emitter-Base-Voltage-VEBO?
Q: Yes, the product's Emitter-Base-Voltage-VEBO is indeed 5 V
A: Is the cutoff frequency of the product Maximum-DC-Collector-Current?
Q: Yes, the product's Maximum-DC-Collector-Current is indeed 4 A
A: Is the cutoff frequency of the product Continuous-Collector-Current?
Q: Yes, the product's Continuous-Collector-Current is indeed 4 A
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 750
A: At what frequency does the Maximum-Collector-Cut-off-Current?
Q: The product Maximum-Collector-Cut-off-Current is 200 uA.
