| Mfr. #: | BDX54C |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | TRANS PNP DARL 100V 8A TO-220AB |
| 生命周期: | 制造商新产品。 |
| 数据表: | BDX54C 数据表 |
Product belongs to the Darlingtons series. Bulk is the packaging method for this product The BDX54C_NL is listed as a Part-Aliase. Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220 Configuration Single Transistor type: PNP - Darlington Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 100V DC current gain minimum (hFE) of Ic/Vce at 750 @ 3A, 3V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2V @ 12mA, 3A Power-off control: 60 W Maximum operating temperature of + 150 C Rated VCEO up to 100 V The transistor polarity is PNP. The 100 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 8 A This product is capable of handling a 8 A continuous collector current. Minimum hfe for DC collector-base gain is 750. 200 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

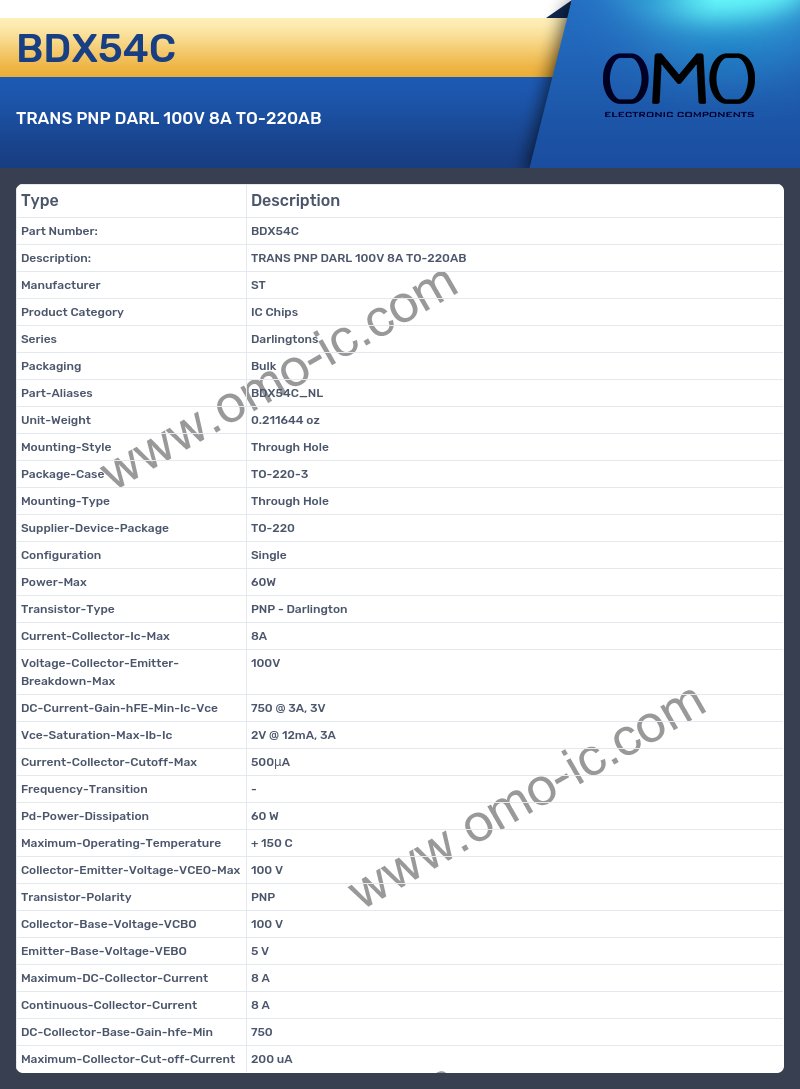

BDX54C Specifications
A: What is the Series of the product?
Q: The Series of the product is Darlingtons.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Bulk
A: What is the Part-Aliases of the product?
Q: The Part-Aliases of the product is BDX54C_NL.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.211644 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is TO-220-3.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed TO-220
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is PNP - Darlington.
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 8A
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 100V
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 750 @ 3A, 3V.
A: What is the Vce-Saturation-Max-Ib-Ic of the product?
Q: The Vce-Saturation-Max-Ib-Ic of the product is 2V @ 12mA, 3A.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 60 W
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 100 V.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is PNP.
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is 100 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: At what frequency does the Maximum-DC-Collector-Current?
Q: The product Maximum-DC-Collector-Current is 8 A.
A: What is the Continuous-Collector-Current of the product?
Q: The Continuous-Collector-Current of the product is 8 A.
A: At what frequency does the DC-Collector-Base-Gain-hfe-Min?
Q: The product DC-Collector-Base-Gain-hfe-Min is 750.
A: What is the Maximum-Collector-Cut-off-Current of the product?
Q: The Maximum-Collector-Cut-off-Current of the product is 200 uA.
