BTB24-800BWRG

BTB24-800BWRG Overview

Product belongs to the Snubberless series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220AB Configuration Single 75mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.3V 50mA of Current-Gate-Trigger-Igt-Max 25A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 250A, 260A for 50-60Hz Itsm. Alternistor - Snubberless Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 800 V Rated Repetitive Off-State Voltage VDRM; 75 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 50 mA; 260 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. The 1.55 V On-State-Voltage

BTB24-800BWRG Image

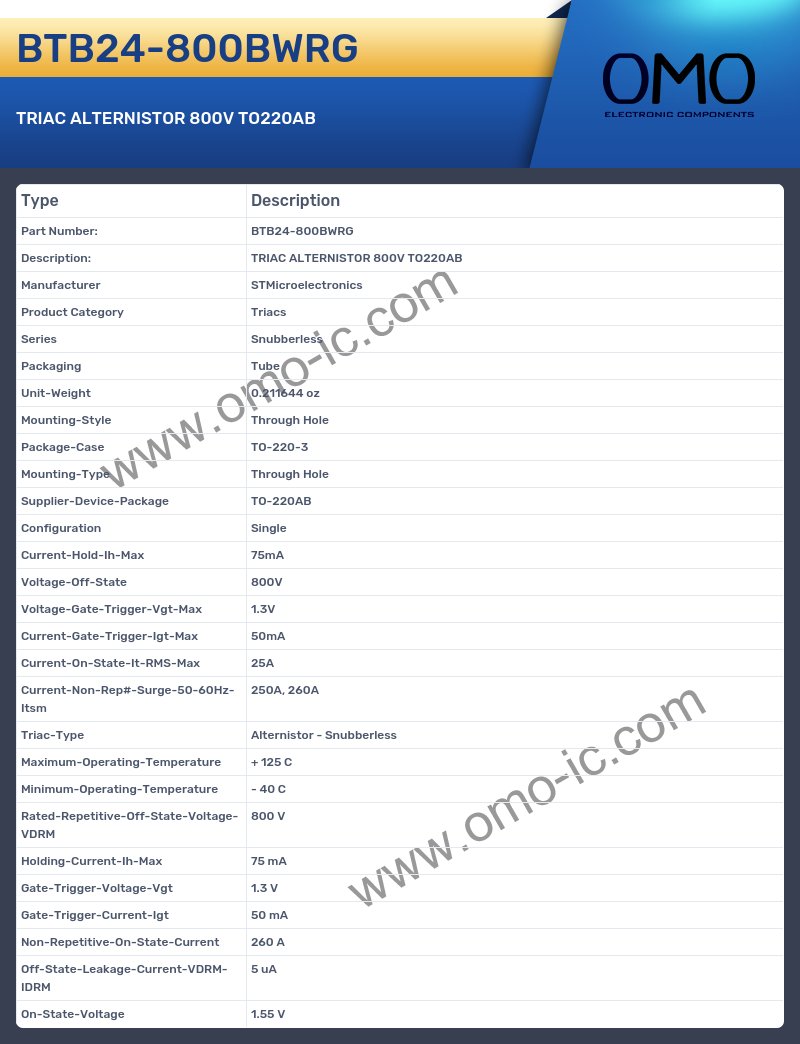

BTB24-800BWRG Specifications

• Manufacturer STMicroelectronics
• Product Category Triacs
• Series Snubberless
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Configuration Single
• Current-Hold-Ih-Max 75mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 50mA
• Current-On-State-It-RMS-Max 25A
• Current-Non-Rep#-Surge-50-60Hz-Itsm 250A, 260A
• Triac-Type Alternistor - Snubberless
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 800 V
• Holding-Current-Ih-Max 75 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 50 mA
• Non-Repetitive-On-State-Current 260 A
• Off-State-Leakage-Current-VDRM-IDRM 5 uA
• On-State-Voltage 1.55 V
