BZW06-48B

BZW06-48B Overview

Product belongs to the BZW06, TRANSIL series. Type: Zener Tape & Box (TB) is the packaging method for this product Weight of 0.014110 oz Through Hole Mounting-Style This product's Termination-Style is ' Axial ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 175 C operating temperature range for diverse applications 6.75 mm length of the product The 3.53 mm is at most 7.6 mm. DO-204AC, DO-15, Axial Operational temperature range: - Through Hole mounting type Versatile General Purpose applications for maximum usability Supplier device package: DO-15 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 47.8V. The Voltage-Breakdown-Min is 53.2V. No Power-Line-Protection 350pF @ 1MHz Capacitance-Frequency Power-off control: 600 W Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Breakdown-Voltage: 53.2 V Clamping-Voltage: 100 V 7.8 A Peak Surge Current 47.8 V working voltage Polarity: Bidirectional

BZW06-48B Image

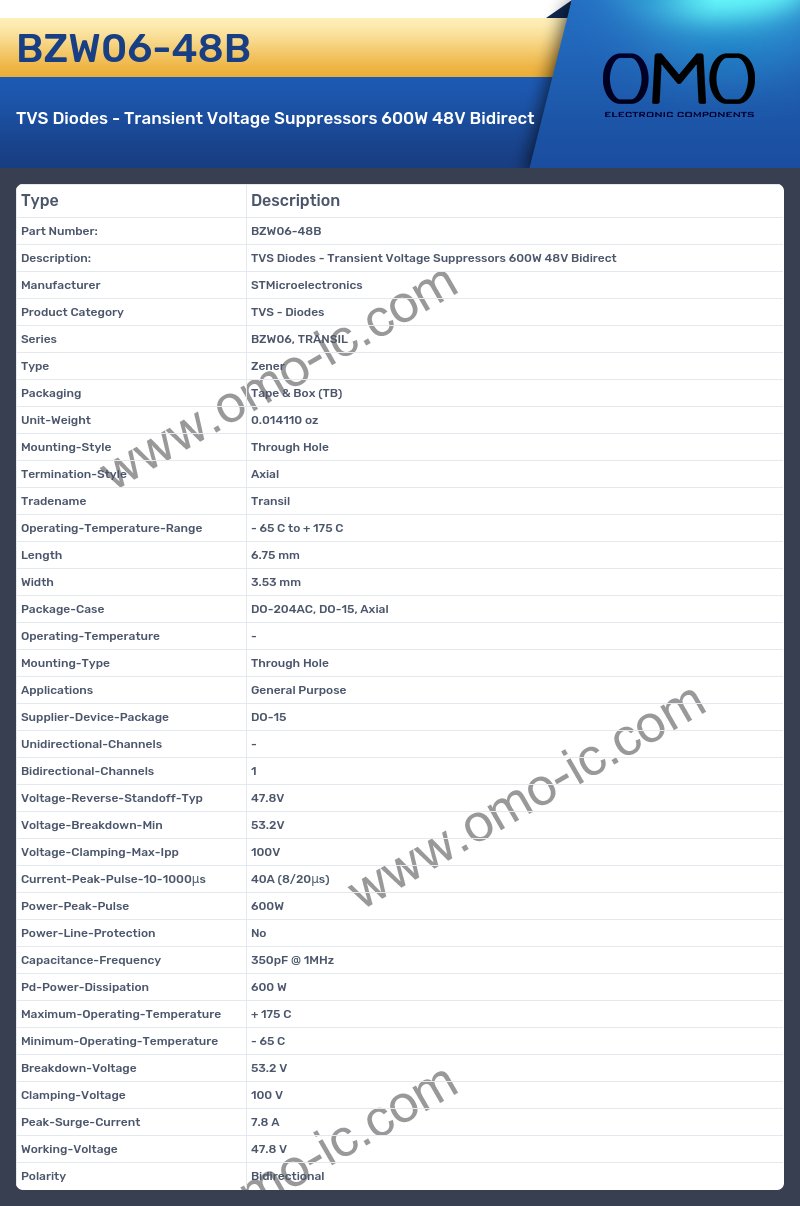

BZW06-48B Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series BZW06, TRANSIL
• Type Zener
• Packaging Tape & Box (TB)
• Unit-Weight 0.014110 oz
• Mounting-Style Through Hole
• Termination-Style Axial
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 175 C
• Length 6.75 mm
• Width 3.53 mm
• Package-Case DO-204AC, DO-15, Axial
• Operating-Temperature -
• Mounting-Type Through Hole
• Applications General Purpose
• Supplier-Device-Package DO-15
• Unidirectional-Channels -
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 47.8V
• Voltage-Breakdown-Min 53.2V
• Voltage-Clamping-Max-Ipp 100V
• Current-Peak-Pulse-10-1000μs 40A (8/20μs)
• Power-Peak-Pulse 600W
• Power-Line-Protection No
• Capacitance-Frequency 350pF @ 1MHz
• Pd-Power-Dissipation 600 W
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 53.2 V
• Clamping-Voltage 100 V
• Peak-Surge-Current 7.8 A
• Working-Voltage 47.8 V
• Polarity Bidirectional
