CC1020RSSR

CC1020RSSR Overview

Product belongs to the CC1020 series. Type: TxRx Only Tape & Reel (TR) is the packaging method for this product Weight of 0.002547 oz SMD/SMT Mounting-Style VQFN-32 This product's 402MHz ~ 470MHz, 804MHz ~ 960MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 402 MHz to 470 MHz 804 MHz to 960 MHz Sensitivity: -118dBm Voltage Supply Range: 2.3 V ~ 3.6 V This product comes with a - memory size. Data rate maximum is 153.6kBaud . Serial Interfaces: SPI, UART 10dBm Current receiving is 19.9mA General ISM is the RF family standard. FSK, GFSK, OOK modulated The device has 1 GPIOs. 12.3mA ~ 27.1mA range: 8.7mA to 32.1mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.3 V to 3.6 V supply voltage for reliable performance. 4-Wire SPI interface type Maximum data rate is 153.6 kb/s Maximum supply voltage of 3.6 V Minimum supply voltage is 2.3 V The product has 1 receivers. FSK GFSK OOK are the supported modulation formats. The number of transmitters is 1.

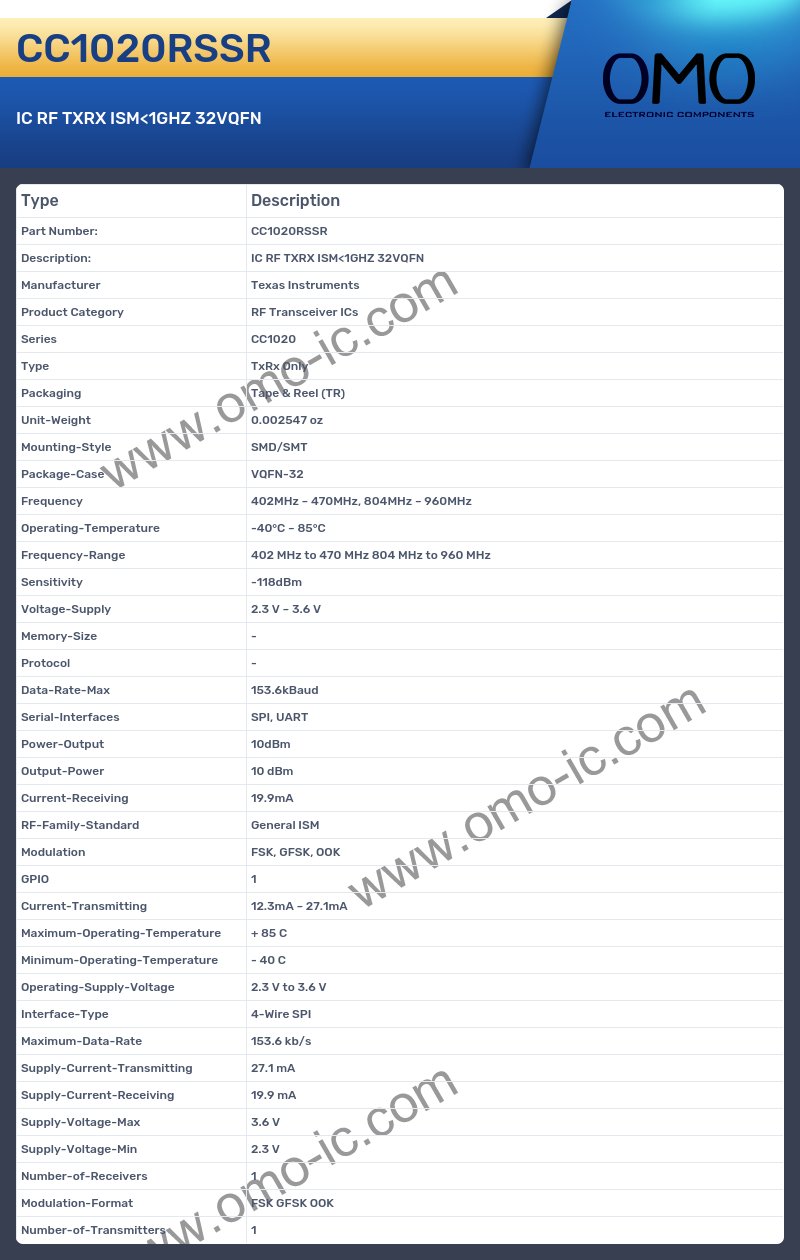

CC1020RSSR Image

CC1020RSSR Specifications

• Manufacturer Texas Instruments
• Product Category RF Transceiver ICs
• Series CC1020
• Type TxRx Only
• Packaging Tape & Reel (TR)
• Unit-Weight 0.002547 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-32
• Frequency 402MHz ~ 470MHz, 804MHz ~ 960MHz
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 402 MHz to 470 MHz 804 MHz to 960 MHz
• Sensitivity -118dBm
• Voltage-Supply 2.3 V ~ 3.6 V
• Memory-Size -
• Protocol -
• Data-Rate-Max 153.6kBaud
• Serial-Interfaces SPI, UART
• Power-Output 10dBm
• Output-Power 10 dBm
• Current-Receiving 19.9mA
• RF-Family-Standard General ISM
• Modulation FSK, GFSK, OOK
• GPIO 1
• Current-Transmitting 12.3mA ~ 27.1mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.3 V to 3.6 V
• Interface-Type 4-Wire SPI
• Maximum-Data-Rate 153.6 kb/s
• Supply-Current-Transmitting 27.1 mA
• Supply-Current-Receiving 19.9 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.3 V
• Number-of-Receivers 1
• Modulation-Format FSK GFSK OOK
• Number-of-Transmitters 1
