CD4016BEE4 Overview

Product belongs to the 4000B series. Type: Bilateral, FET Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: -55°C ~ 125°C Through Hole mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-PDIP Voltage supply source: Analog and digital Dual Supply Configuration 4 x SPST Circuit type: 1 x 1:1 4 Independent Circuit Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 18 V supply voltage for reliable performance. Maximum supply current: 5 uA Maximum supply voltage of 18 V Minimum supply voltage is 3 V Single Supply Dual Supply supply type Max on-resistance of 850 Ohms 4 Switch switch functionality Maximum on-time: 30 ns The maximum switch voltage for this product is 15 V The +/- 10 V.

CD4016BEE4 Image

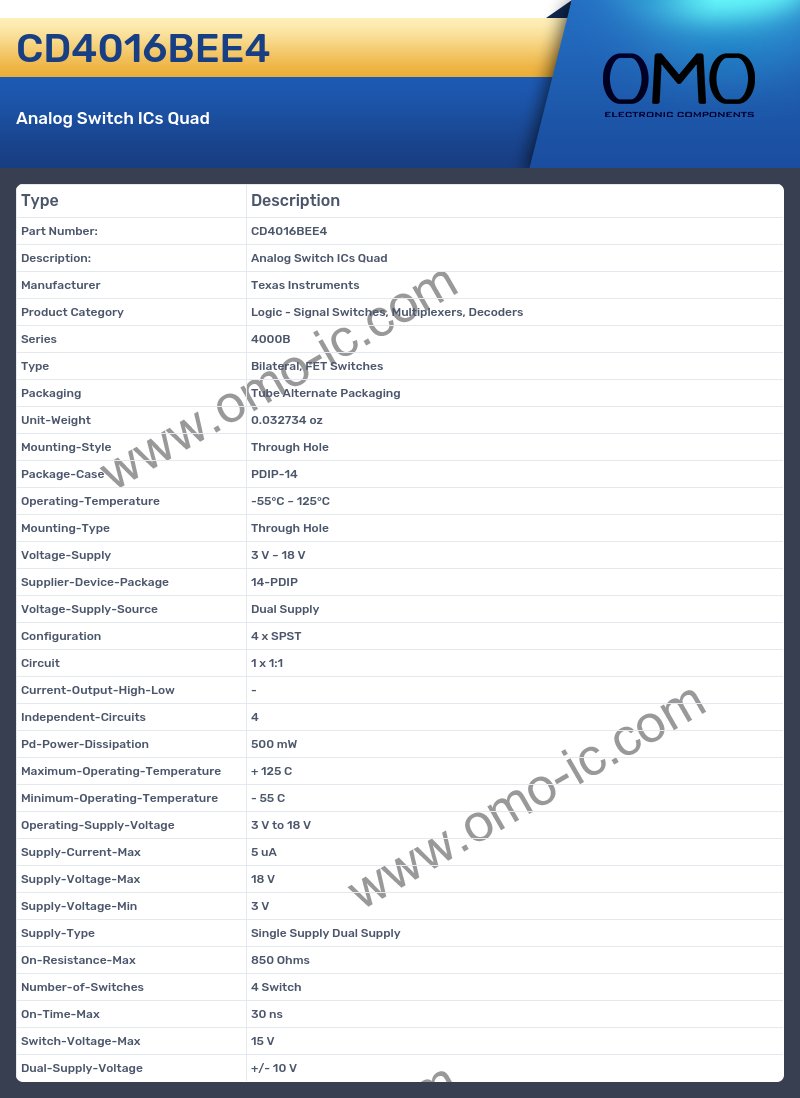

CD4016BEE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Signal Switches, Multiplexers, Decoders
• Series 4000B
• Type Bilateral, FET Switches
• Packaging Tube Alternate Packaging
• Unit-Weight 0.032734 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Through Hole
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 14-PDIP
• Voltage-Supply-Source Dual Supply
• Configuration 4 x SPST
• Circuit 1 x 1:1
• Current-Output-High-Low -
• Independent-Circuits 4
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Voltage 3 V to 18 V
• Supply-Current-Max 5 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 3 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 850 Ohms
• Number-of-Switches 4 Switch
• On-Time-Max 30 ns
• Switch-Voltage-Max 15 V
• Dual-Supply-Voltage +/- 10 V
