| Mfr. #: | CD4066BM |
|---|---|
| 制造商: | Texas Instruments |
| 描述: | IC QUAD BILATERAL SWITCH 14-SOIC |
| 生命周期: | 制造商新产品。 |
| 数据表: | CD4066BM 数据表 |
Product belongs to the 4000B series. Type: Bilateral, FET Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-SOIC Voltage supply source: Analog and digital Dual Supply Configuration 4 x SPST Circuit type: 1 x 1:1 4 Independent Circuit Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 18 V supply voltage for reliable performance. Maximum supply current: 5 uA Maximum supply voltage of 18 V Minimum supply voltage is 3 V Single Supply Dual Supply supply type Max on-resistance of 240 Ohms Maximum off time: 30 ns 4 Switch switch functionality Maximum on-time: 30 ns The maximum switch voltage for this product is 15 V The +/- 7.5 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

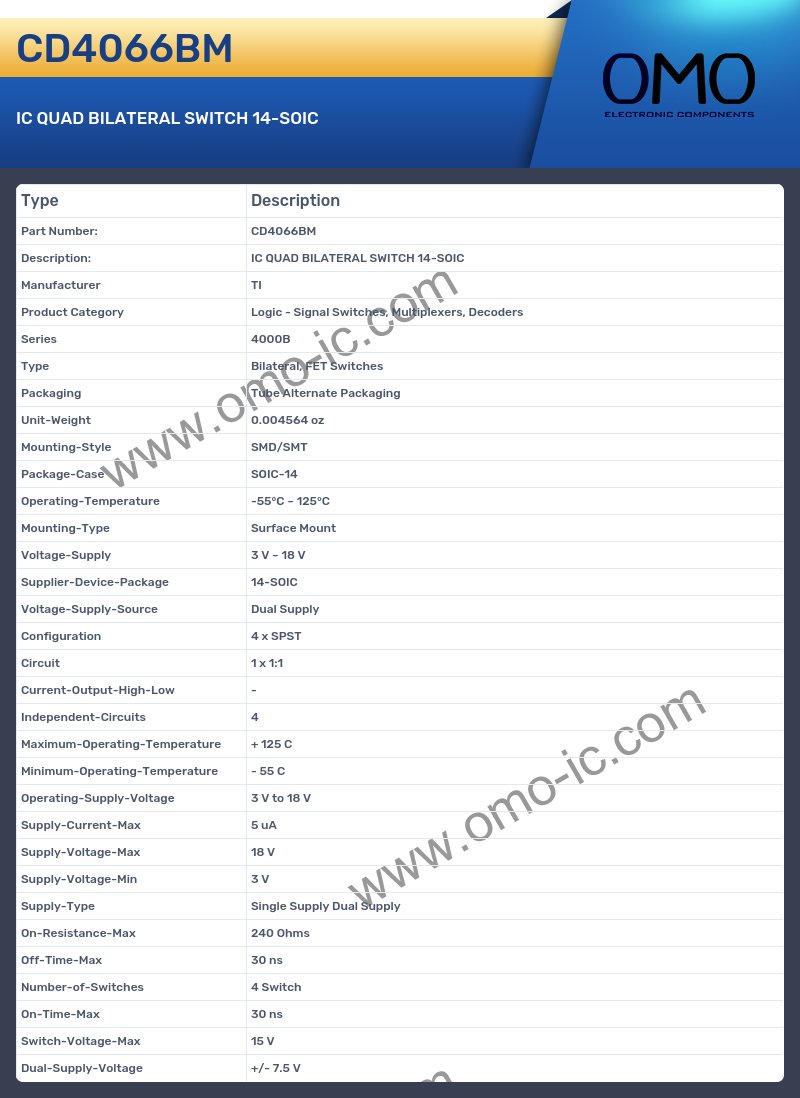

CD4066BM Specifications
A: What is the Series of the product?
Q: The Series of the product is 4000B.
A: At what frequency does the Type?
Q: The product Type is Bilateral, FET Switches.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube Alternate Packaging
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.004564 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-14.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 125°C.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 3 V ~ 18 V.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 14-SOIC
A: Is the cutoff frequency of the product Voltage-Supply-Source?
Q: Yes, the product's Voltage-Supply-Source is indeed Dual Supply
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed 4 x SPST
A: Is the cutoff frequency of the product Circuit?
Q: Yes, the product's Circuit is indeed 1 x 1:1
A: Is the cutoff frequency of the product Independent-Circuits?
Q: Yes, the product's Independent-Circuits is indeed 4
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 3 V to 18 V.
A: At what frequency does the Supply-Current-Max?
Q: The product Supply-Current-Max is 5 uA.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 18 V.
A: Is the cutoff frequency of the product Supply-Voltage-Min?
Q: Yes, the product's Supply-Voltage-Min is indeed 3 V
A: What is the Supply-Type of the product?
Q: The Supply-Type of the product is Single Supply Dual Supply.
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 240 Ohms.
A: What is the Off-Time-Max of the product?
Q: The Off-Time-Max of the product is 30 ns.
A: At what frequency does the Number-of-Switches?
Q: The product Number-of-Switches is 4 Switch.
A: What is the On-Time-Max of the product?
Q: The On-Time-Max of the product is 30 ns.
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: What is the Dual-Supply-Voltage of the product?
Q: The Dual-Supply-Voltage of the product is +/- 7.5 V.
