| Mfr. #: | CD4066BM96E4 |
|---|---|
| 制造商: | Texas Instruments |
| 描述: | Analog Switch ICs Quad |
| 生命周期: | 制造商新产品。 |
| 数据表: | CD4066BM96E4 数据表 |
Product belongs to the 4000B series. Type: Bilateral, FET Switches Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-SOIC Voltage supply source: Analog and digital Dual Supply Configuration 4 x SPST Circuit type: 1 x 1:1 4 Independent Circuit Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 18 V supply voltage for reliable performance. Maximum supply current: 5 uA Maximum supply voltage of 18 V Minimum supply voltage is 3 V Single Supply Dual Supply supply type Max on-resistance of 240 Ohms Maximum off time: 30 ns 4 Switch switch functionality Maximum on-time: 30 ns The maximum switch voltage for this product is 15 V The +/- 7.5 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

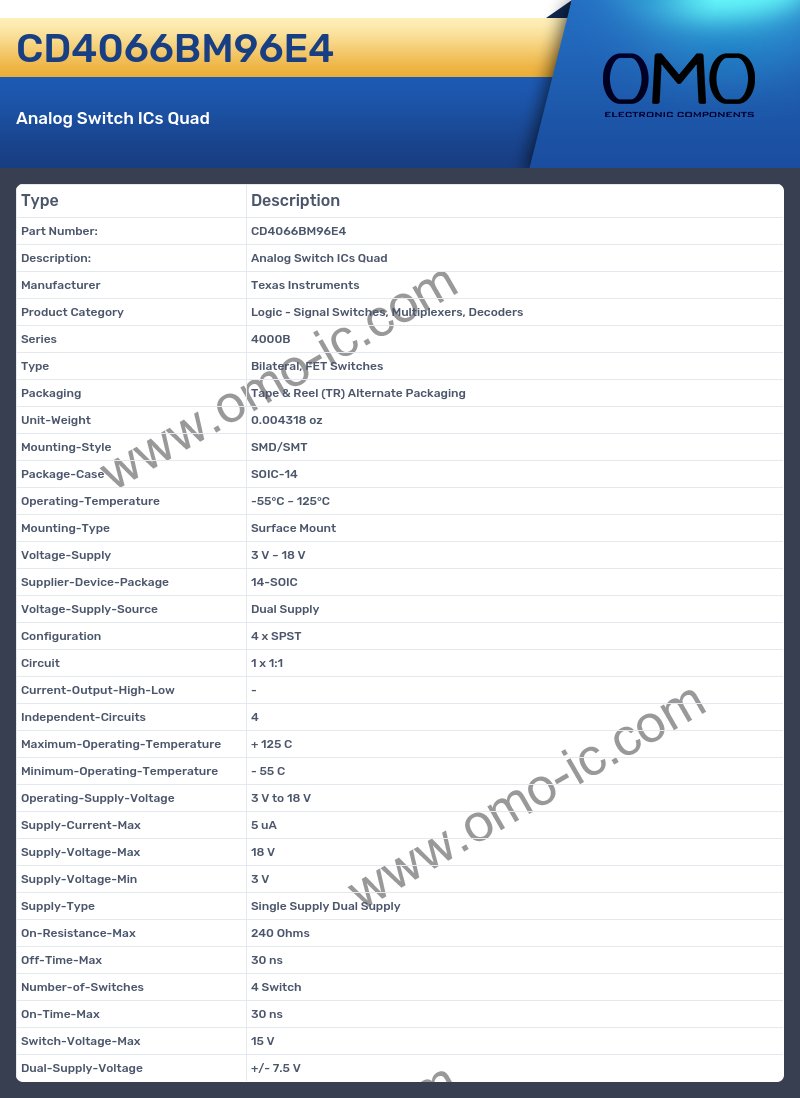

CD4066BM96E4 Specifications
A: What is the Series of the product?
Q: The Series of the product is 4000B.
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed Bilateral, FET Switches
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tape & Reel (TR) Alternate Packaging
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.004318 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Package-Case?
Q: The product Package-Case is SOIC-14.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 125°C
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Voltage-Supply of the product?
Q: The Voltage-Supply of the product is 3 V ~ 18 V.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 14-SOIC.
A: What is the Voltage-Supply-Source of the product?
Q: The Voltage-Supply-Source of the product is Dual Supply.
A: What is the Configuration of the product?
Q: The Configuration of the product is 4 x SPST.
A: Is the cutoff frequency of the product Circuit?
Q: Yes, the product's Circuit is indeed 1 x 1:1
A: At what frequency does the Independent-Circuits?
Q: The product Independent-Circuits is 4.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Operating-Supply-Voltage?
Q: The product Operating-Supply-Voltage is 3 V to 18 V.
A: What is the Supply-Current-Max of the product?
Q: The Supply-Current-Max of the product is 5 uA.
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 18 V.
A: What is the Supply-Voltage-Min of the product?
Q: The Supply-Voltage-Min of the product is 3 V.
A: Is the cutoff frequency of the product Supply-Type?
Q: Yes, the product's Supply-Type is indeed Single Supply Dual Supply
A: What is the On-Resistance-Max of the product?
Q: The On-Resistance-Max of the product is 240 Ohms.
A: What is the Off-Time-Max of the product?
Q: The Off-Time-Max of the product is 30 ns.
A: At what frequency does the Number-of-Switches?
Q: The product Number-of-Switches is 4 Switch.
A: Is the cutoff frequency of the product On-Time-Max?
Q: Yes, the product's On-Time-Max is indeed 30 ns
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: What is the Dual-Supply-Voltage of the product?
Q: The Dual-Supply-Voltage of the product is +/- 7.5 V.
