CD74HCT4520E

CD74HCT4520E Overview

Product belongs to the 74HCT series. Tube Alternate Packaging is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style Wide - 55 C to + 125 C operating temperature range for diverse applications PDIP-16 Operational temperature range: -55°C ~ 125°C Through Hole mounting type Up directionality Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 16-PDIP 4 bit bits 2 element Binary Counter logic type 4 bits per element This product's Asynchronous. Synchronous timing The 25MHz count rate. Positive, Negative trigger type This product operates at a 4.5 V to 5.5 V supply voltage for reliable performance. Binary Counter-Type HCT logic type Up counting sequence

CD74HCT4520E Image

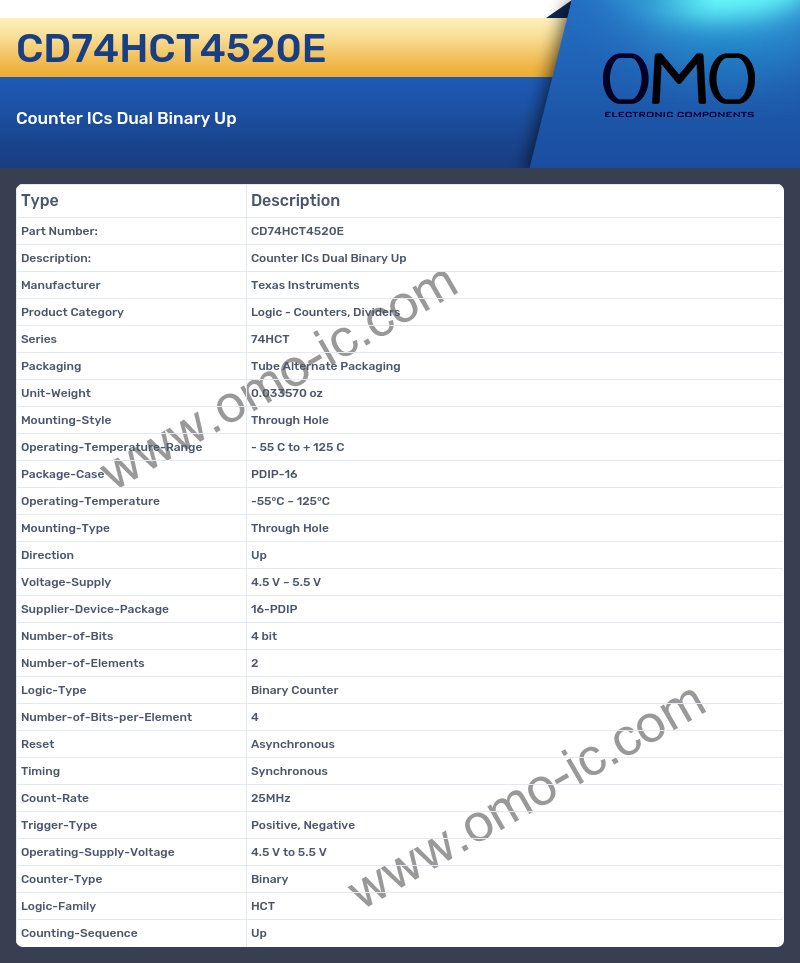

CD74HCT4520E Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Counters, Dividers
• Series 74HCT
• Packaging Tube Alternate Packaging
• Unit-Weight 0.033570 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range - 55 C to + 125 C
• Package-Case PDIP-16
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Through Hole
• Direction Up
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 16-PDIP
• Number-of-Bits 4 bit
• Number-of-Elements 2
• Logic-Type Binary Counter
• Number-of-Bits-per-Element 4
• Reset Asynchronous
• Timing Synchronous
• Count-Rate 25MHz
• Trigger-Type Positive, Negative
• Operating-Supply-Voltage 4.5 V to 5.5 V
• Counter-Type Binary
• Logic-Family HCT
• Counting-Sequence Up
