| Mfr. #: | CSD17501 |
|---|---|
| 制造商: | Texas Instruments |
| 描述: | |
| 生命周期: | 制造商新产品。 |
| 数据表: | CSD17501 数据表 |
RoHS compliant with Details Input bias current of SMD/SMT Package type is VSON-FET-8 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 30 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 28 A; The Rds On - Drain-Source Resistance of the product is 3.7 mOhms. The Vgs - Gate-Source Voltage attribute for this product is 20 V. The 1.3 V Gate-Source Threshold Voltage of Vgs th; 13.2 nC Gate Charge of Qg; Maximum Operating Temperature: + 150 C Si is the technology used. Reel is the packaging method for this product Configuration Single Fall Time of 7.9 ns Minimum Forward Transconductance of 110 S. - 55 C minimum operating temperature The power dissipation is 3.2 W. 17 ns Rise Time Product belongs to the CSD17501Q5A series. Trade name: NexFET. 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 18 ns; The 10.4 ns typical turn-on delay time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

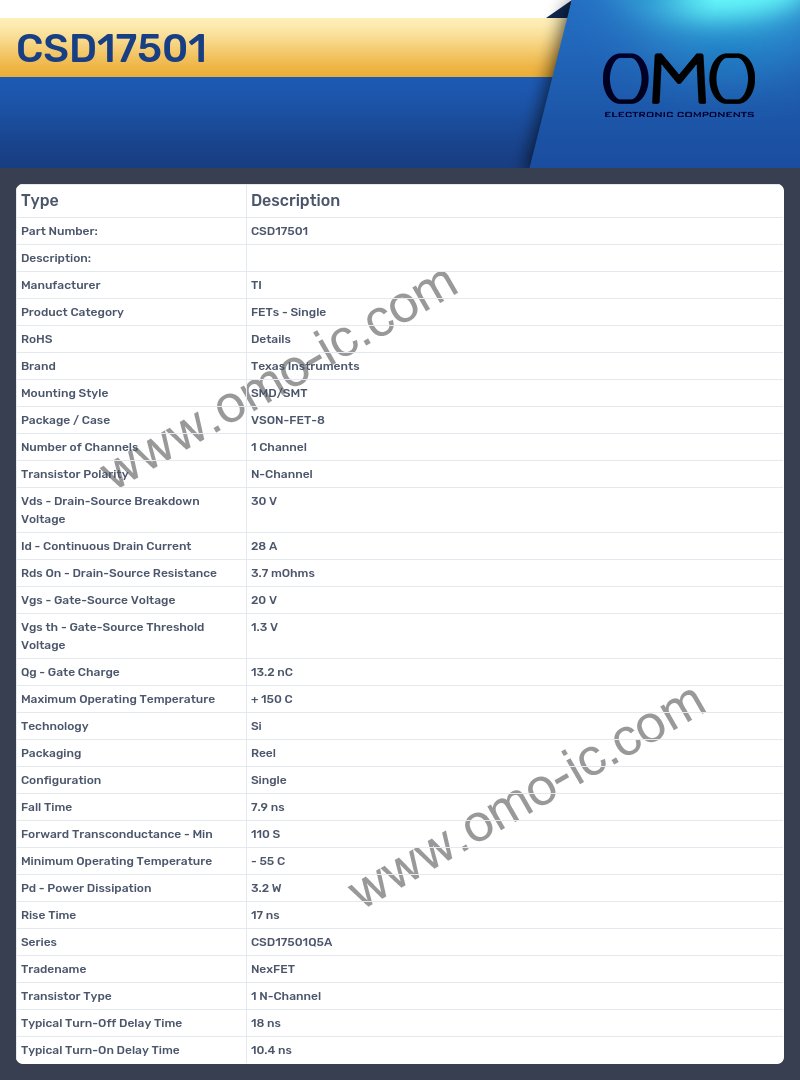

CSD17501 Specifications
A: What is the RoHS of the product?
Q: The RoHS of the product is Details.
A: What is the Mounting Style of the product?
Q: The Mounting Style of the product is SMD/SMT.
A: What is the Package / Case of the product?
Q: The Package / Case of the product is VSON-FET-8.
A: Is the cutoff frequency of the product Number of Channels?
Q: Yes, the product's Number of Channels is indeed 1 Channel
A: What is the Transistor Polarity of the product?
Q: The Transistor Polarity of the product is N-Channel.
A: At what frequency does the Vds - Drain-Source Breakdown Voltage?
Q: The product Vds - Drain-Source Breakdown Voltage is 30 V.
A: At what frequency does the Id - Continuous Drain Current?
Q: The product Id - Continuous Drain Current is 28 A.
A: What is the Rds On - Drain-Source Resistance of the product?
Q: The Rds On - Drain-Source Resistance of the product is 3.7 mOhms.
A: Is the cutoff frequency of the product Vgs - Gate-Source Voltage?
Q: Yes, the product's Vgs - Gate-Source Voltage is indeed 20 V
A: What is the Vgs th - Gate-Source Threshold Voltage of the product?
Q: The Vgs th - Gate-Source Threshold Voltage of the product is 1.3 V.
A: What is the Qg - Gate Charge of the product?
Q: The Qg - Gate Charge of the product is 13.2 nC.
A: Is the cutoff frequency of the product Maximum Operating Temperature?
Q: Yes, the product's Maximum Operating Temperature is indeed + 150 C
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: What is the Packaging of the product?
Q: The Packaging of the product is Reel.
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Fall Time of the product?
Q: The Fall Time of the product is 7.9 ns.
A: What is the Forward Transconductance - Min of the product?
Q: The Forward Transconductance - Min of the product is 110 S.
A: At what frequency does the Minimum Operating Temperature?
Q: The product Minimum Operating Temperature is - 55 C.
A: What is the Pd - Power Dissipation of the product?
Q: The Pd - Power Dissipation of the product is 3.2 W.
A: What is the Rise Time of the product?
Q: The Rise Time of the product is 17 ns.
A: What is the Series of the product?
Q: The Series of the product is CSD17501Q5A.
A: Is the cutoff frequency of the product Tradename?
Q: Yes, the product's Tradename is indeed NexFET
A: Is the cutoff frequency of the product Transistor Type?
Q: Yes, the product's Transistor Type is indeed 1 N-Channel
A: What is the Typical Turn-Off Delay Time of the product?
Q: The Typical Turn-Off Delay Time of the product is 18 ns.
A: Is the cutoff frequency of the product Typical Turn-On Delay Time?
Q: Yes, the product's Typical Turn-On Delay Time is indeed 10.4 ns
