CSD75207W15

CSD75207W15 Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. 9-UFBGA, DSBGA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 9-DSBGA Configuration Dual Common Source Channel This product uses an 2 P-Channel (Dual) FET-Type transistor. Transistor type: 2 P-Channel - This product has an 595pF @ 10V value of 300pF @ 25V. This product's Logic Level Gate. 3.9A continuous drain-ID current at 25°C; This product has an 162 mOhm @ 1A, 1.8V of 12 Ohm @ 150mA, 0V. Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product's - 6 V. The ID of continuous drain current is - 2.4 A. This product has a - 800 mV Vgs-th gate-source threshold voltage for efficient power management. The 27 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. Qg-Gate-Charge is 2.9 nC.

CSD75207W15 Image

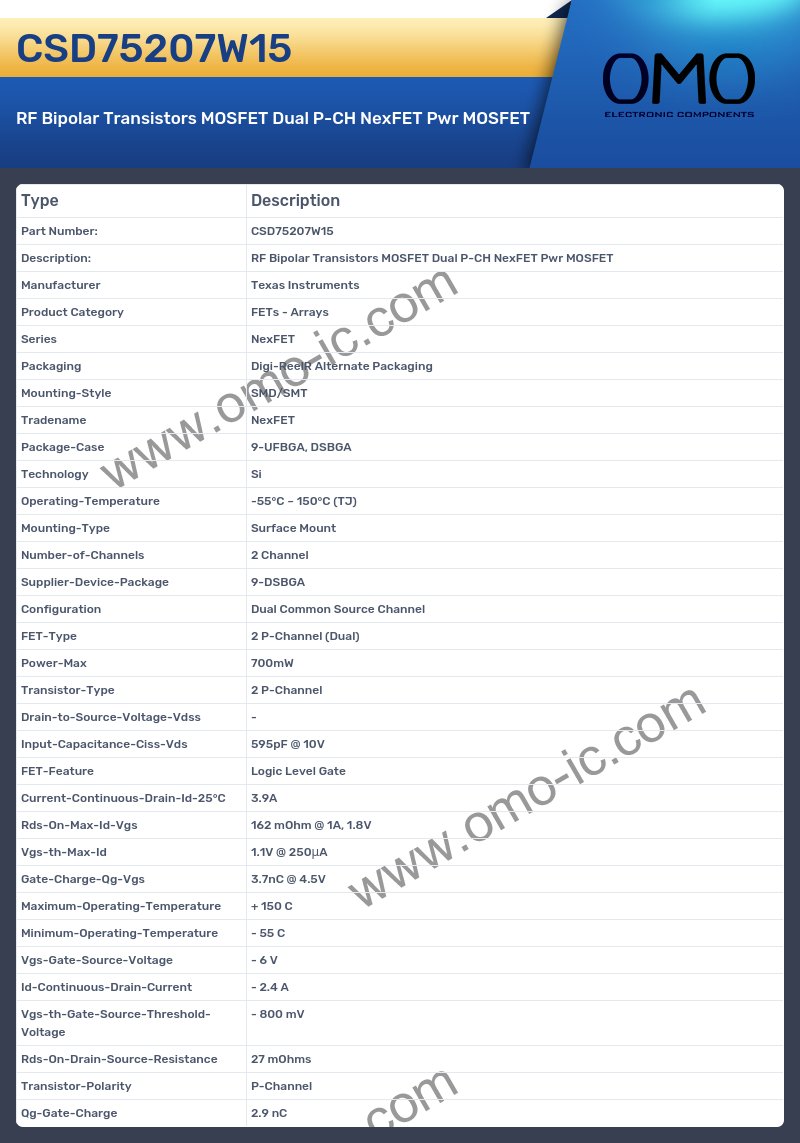

CSD75207W15 Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Arrays
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 9-UFBGA, DSBGA
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package 9-DSBGA
• Configuration Dual Common Source Channel
• FET-Type 2 P-Channel (Dual)
• Power-Max 700mW
• Transistor-Type 2 P-Channel
• Drain-to-Source-Voltage-Vdss -
• Input-Capacitance-Ciss-Vds 595pF @ 10V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 3.9A
• Rds-On-Max-Id-Vgs 162 mOhm @ 1A, 1.8V
• Vgs-th-Max-Id 1.1V @ 250μA
• Gate-Charge-Qg-Vgs 3.7nC @ 4.5V
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Vgs-Gate-Source-Voltage - 6 V
• Id-Continuous-Drain-Current - 2.4 A
• Vgs-th-Gate-Source-Threshold-Voltage - 800 mV
• Rds-On-Drain-Source-Resistance 27 mOhms
• Transistor-Polarity P-Channel
• Qg-Gate-Charge 2.9 nC
