CSD87501LT

CSD87501LT Overview

Product belongs to the NexFET series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. 10-XFBGA Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Number of channels: 2 Channel Supplier device package: 10-Picostar (3.37x1.47) Configuration Dual This product uses an 2 N-Channel (Dual) Common Drain FET-Type transistor. Transistor type: 2 N-Channel - This product has an - value of 300pF @ 25V. This product's Logic Level Gate. - continuous drain-ID current at 25°C; This product has an - of 12 Ohm @ 150mA, 0V. Power-off control: 2.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 712 ns of 16 ns. This product has a 260 ns of 16 ns. This product's 20 V. The ID of continuous drain current is 72 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 30 V. This product has a 1.3 V Vgs-th gate-source threshold voltage for efficient power management. The 9.3 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 709 ns This product has a 164 ns. Qg-Gate-Charge is 15 nC.

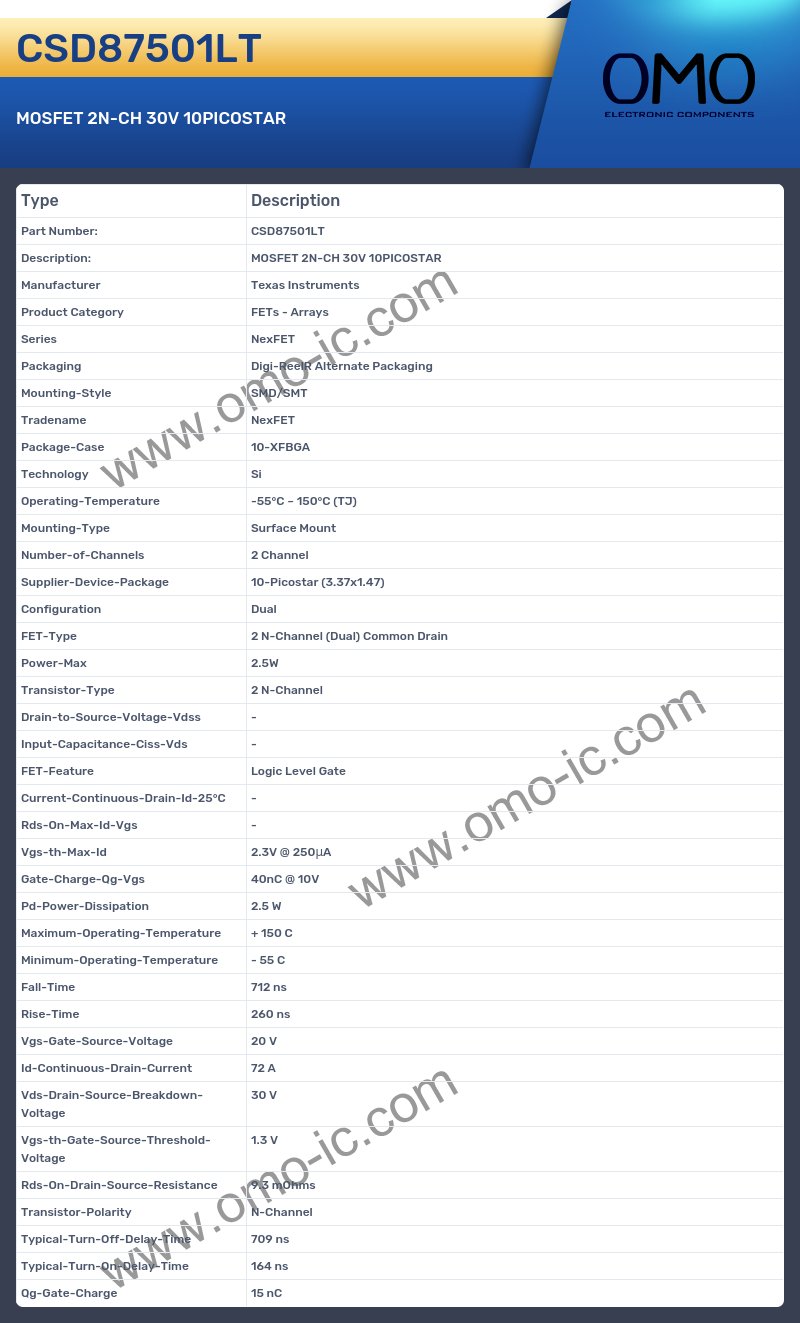

CSD87501LT Image

CSD87501LT Specifications

• Manufacturer Texas Instruments
• Product Category FETs - Arrays
• Series NexFET
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case 10-XFBGA
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Supplier-Device-Package 10-Picostar (3.37x1.47)
• Configuration Dual
• FET-Type 2 N-Channel (Dual) Common Drain
• Power-Max 2.5W
• Transistor-Type 2 N-Channel
• Drain-to-Source-Voltage-Vdss -
• Input-Capacitance-Ciss-Vds -
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C -
• Rds-On-Max-Id-Vgs -
• Vgs-th-Max-Id 2.3V @ 250μA
• Gate-Charge-Qg-Vgs 40nC @ 10V
• Pd-Power-Dissipation 2.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 712 ns
• Rise-Time 260 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current 72 A
• Vds-Drain-Source-Breakdown-Voltage 30 V
• Vgs-th-Gate-Source-Threshold-Voltage 1.3 V
• Rds-On-Drain-Source-Resistance 9.3 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 709 ns
• Typical-Turn-On-Delay-Time 164 ns
• Qg-Gate-Charge 15 nC
