CSD97396Q4M

CSD97396Q4M Overview

Product belongs to the NexFET series. This product is categorized as Driver ICs - Various Type: Synchronous Buck NexFET Power Stage Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. VSON-CLIP-8 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Synchronous Buck Converters applications for maximum usability Interface: PWM Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 8-VSON (4.5x3.5) Configuration PowerStage Number-of-Outputs: 1 Output Current-Output-Channel is 30A The Half Bridge. This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The -. The product's 65A is 4A. Voltage-Load range is 4.5 V ~ 24 V. Power-off control: No Shutdown Power-off control: 8 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 7.8 mA is 92 nA. Output current: 30 A This product has a 60 ns of 16 ns. This product has a 60 ns of 16 ns. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver

CSD97396Q4M Image

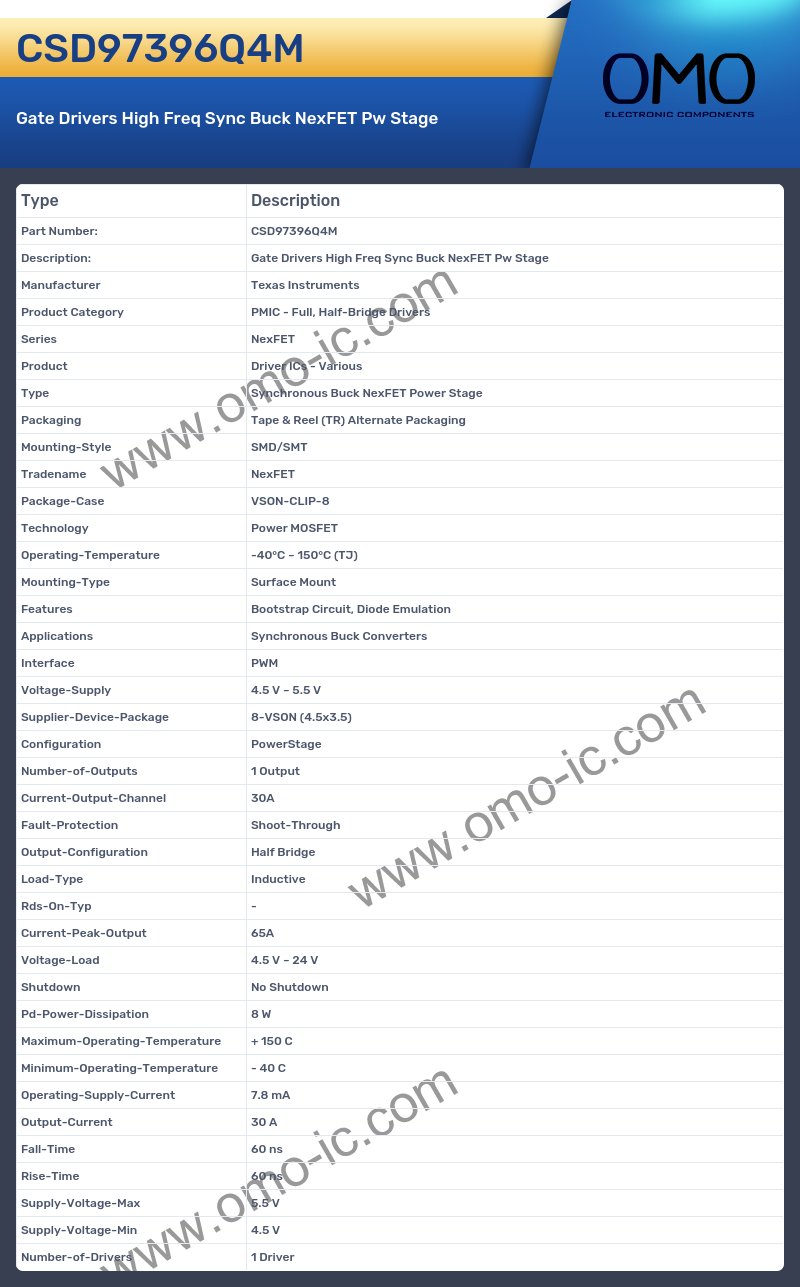

CSD97396Q4M Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Full, Half-Bridge Drivers
• Series NexFET
• Product Driver ICs - Various
• Type Synchronous Buck NexFET Power Stage
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename NexFET
• Package-Case VSON-CLIP-8
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Bootstrap Circuit, Diode Emulation
• Applications Synchronous Buck Converters
• Interface PWM
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 8-VSON (4.5x3.5)
• Configuration PowerStage
• Number-of-Outputs 1 Output
• Current-Output-Channel 30A
• Fault-Protection Shoot-Through
• Output-Configuration Half Bridge
• Load-Type Inductive
• Rds-On-Typ -
• Current-Peak-Output 65A
• Voltage-Load 4.5 V ~ 24 V
• Shutdown No Shutdown
• Pd-Power-Dissipation 8 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 7.8 mA
• Output-Current 30 A
• Fall-Time 60 ns
• Rise-Time 60 ns
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
