D45H8

D45H8 Overview

Product belongs to the D45H8 series. Tube is the packaging method for this product Weight of 0.063493 oz Through Hole Mounting-Style TO-220-3 Configuration Single Power-off control: 480 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 60 V The transistor polarity is PNP. Saturation voltage between collector and emitter is 1 V The - 5 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 10 A Gain-Bandwidth-Product: 40 MHz This product is capable of handling a 8 A continuous collector current. Minimum hfe for DC collector-base gain is 60.

D45H8 Image

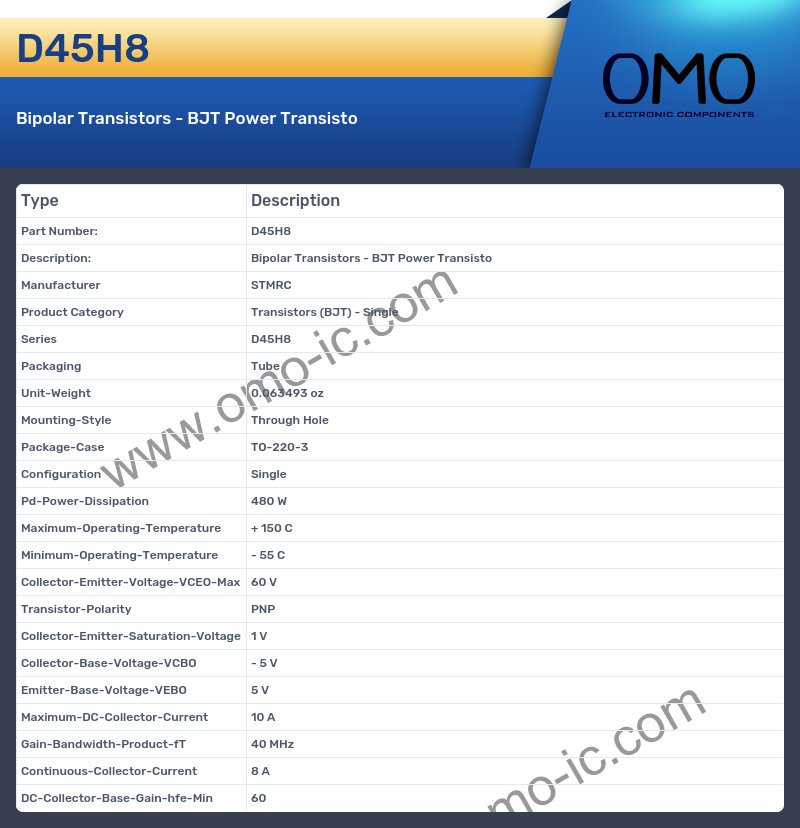

D45H8 Specifications

• Manufacturer STMRC
• Product Category Transistors (BJT) - Single
• Series D45H8
• Packaging Tube
• Unit-Weight 0.063493 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Configuration Single
• Pd-Power-Dissipation 480 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity PNP
• Collector-Emitter-Saturation-Voltage 1 V
• Collector-Base-Voltage-VCBO - 5 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 10 A
• Gain-Bandwidth-Product-fT 40 MHz
• Continuous-Collector-Current 8 A
• DC-Collector-Base-Gain-hfe-Min 60
