DAC3482IRKD25

DAC3482IRKD25 Overview

Product belongs to the DAC3482 series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WQFN-88 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 88-WQFN (9x9) Data-Interface: LVDS - Parallel 16 bits The Voltage-Supply-Analog is 3.14 V ~ 3.46 V. The Voltage Supply Digital for this product is 1.14 V ~ 1.32 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 2 The 10μs (Typ) is an impressive 15 us. Yes Differential-Output Power-off control: 980 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type The DAC3482EVM. Maximum supply voltage of 1.26 V 3.46 V Minimum supply voltage is 1.14 V 3.14 V Number-of-Converters: 2 Converter 1.25 GS/s Sampling Rate Integral Nonlinearity: +/- 4 LSB Reference voltage is 1.2 V . Differential nonlinearity: +/- 2 LSB

DAC3482IRKD25 Image

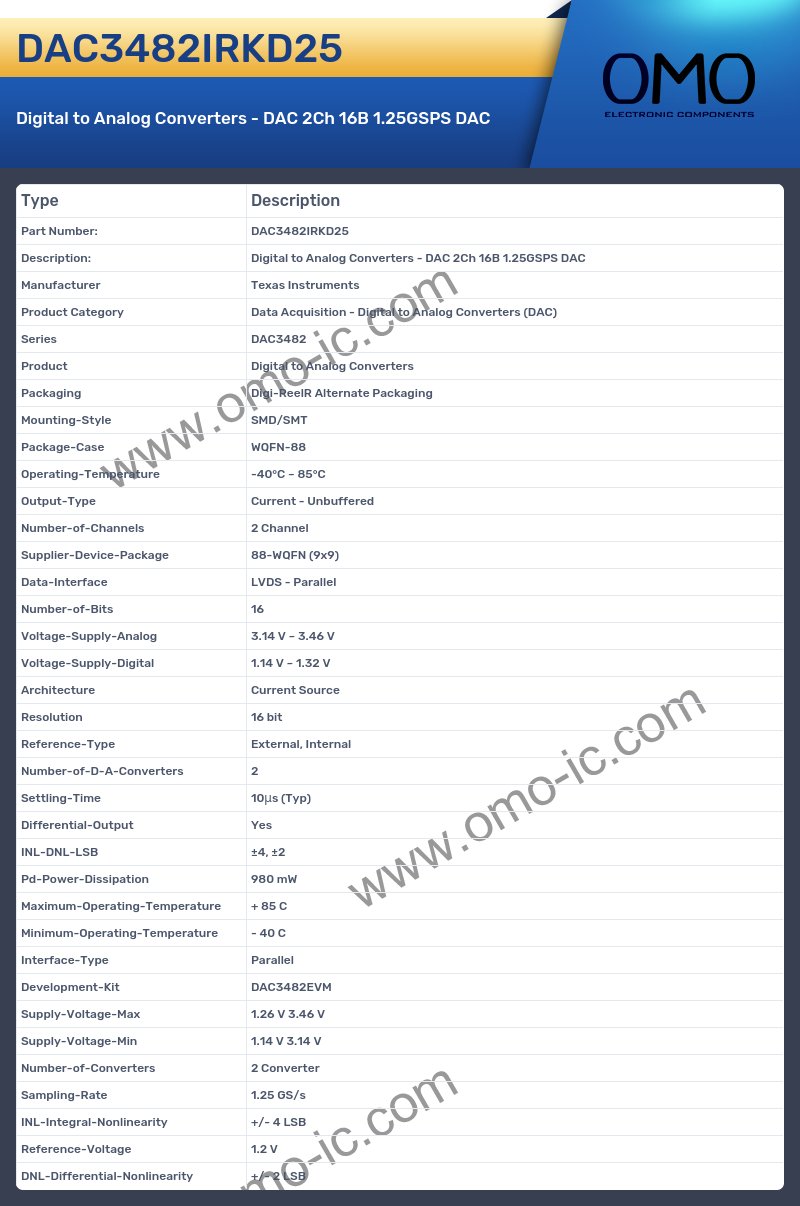

DAC3482IRKD25 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC3482
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WQFN-88
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 88-WQFN (9x9)
• Data-Interface LVDS - Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 3.14 V ~ 3.46 V
• Voltage-Supply-Digital 1.14 V ~ 1.32 V
• Architecture Current Source
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time 10μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±4, ±2
• Pd-Power-Dissipation 980 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Development-Kit DAC3482EVM
• Supply-Voltage-Max 1.26 V 3.46 V
• Supply-Voltage-Min 1.14 V 3.14 V
• Number-of-Converters 2 Converter
• Sampling-Rate 1.25 GS/s
• INL-Integral-Nonlinearity +/- 4 LSB
• Reference-Voltage 1.2 V
• DNL-Differential-Nonlinearity +/- 2 LSB
