DAC7571IDBVT Overview

Product belongs to the DAC7571 series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 105°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: SOT-23-6 Data-Interface: I2C 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is String DAC . Supply is the reference type. Number of D-A converters: 1 The 10μs is an impressive 15 us. No Differential-Output Power-off control: 0.85 mW (Typ) Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C 135 uA is 92 nA. Serial 2-Wire I2C interface type The DAC7571EVM. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 1 Converter 50 kS/s Sampling Rate Integral Nonlinearity: +/- 4 LSB Differential nonlinearity: +/- 1 LSB

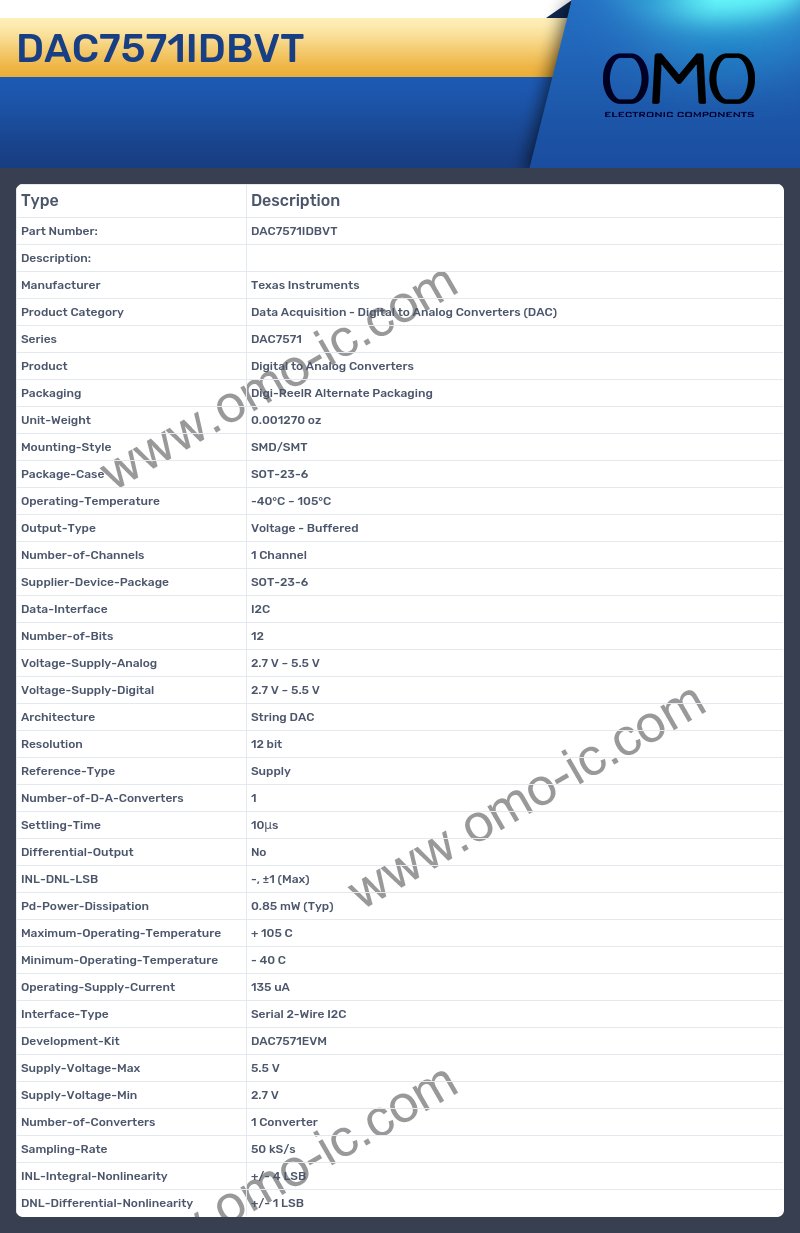

DAC7571IDBVT Image

DAC7571IDBVT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC7571
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 105°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-6
• Data-Interface I2C
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture String DAC
• Resolution 12 bit
• Reference-Type Supply
• Number-of-D-A-Converters 1
• Settling-Time 10μs
• Differential-Output No
• INL-DNL-LSB -, ±1 (Max)
• Pd-Power-Dissipation 0.85 mW (Typ)
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 135 uA
• Interface-Type Serial 2-Wire I2C
• Development-Kit DAC7571EVM
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 1 Converter
• Sampling-Rate 50 kS/s
• INL-Integral-Nonlinearity +/- 4 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
