DAC8805QDBT

DAC8805QDBT Overview

Product belongs to the DAC8805 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.007189 oz SMD/SMT Mounting-Style TSSOP-38 Operational temperature range: -40°C ~ 125°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 38-TSSOP Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is Multiplying DAC . External is the reference type. Number of D-A converters: 2 The 500ns (Typ) is an impressive 15 us. No Differential-Output Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 2 Converter 2 MS/s Sampling Rate

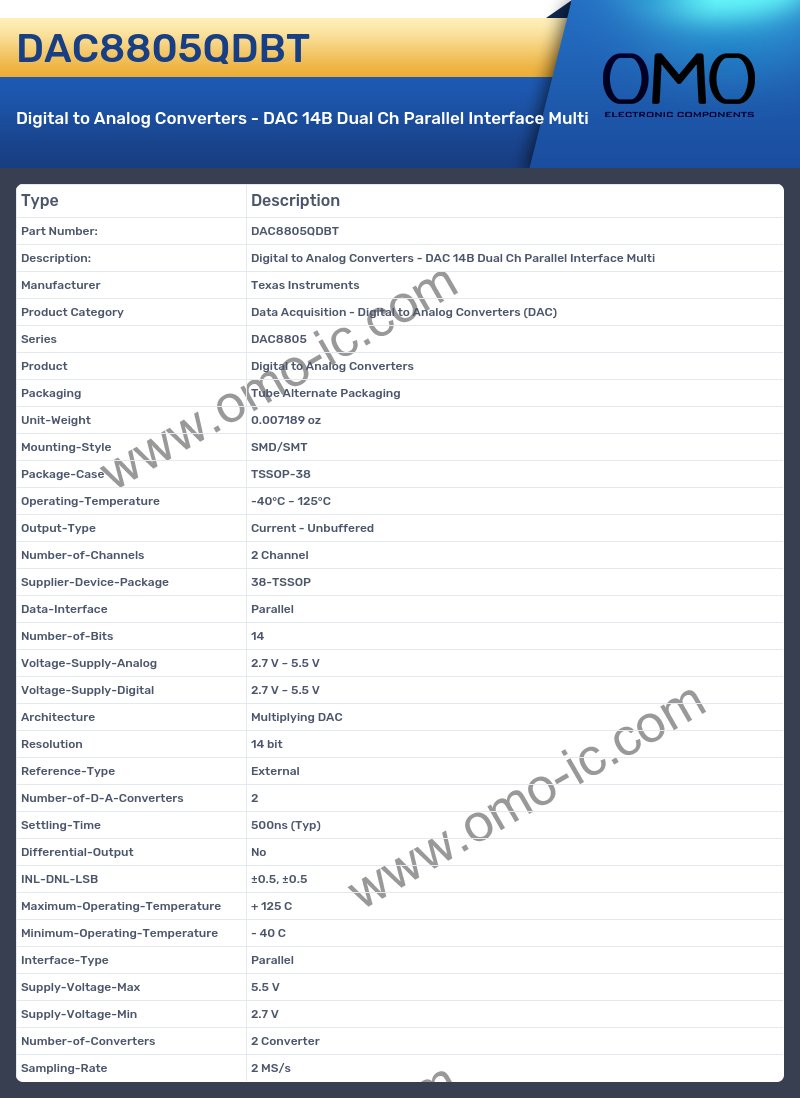

DAC8805QDBT Image

DAC8805QDBT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8805
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007189 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-38
• Operating-Temperature -40°C ~ 125°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 38-TSSOP
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture Multiplying DAC
• Resolution 14 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 500ns (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.5, ±0.5
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 2 Converter
• Sampling-Rate 2 MS/s
