DRV8701PRGET

DRV8701PRGET Overview

Product belongs to the DRV8701 series. This product is categorized as Brushed DC Motor Drivers Type: H-Bridge Driver/Brush Motor Driver Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.001926 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications VQFN-24 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Product function is Controller - Current Management. Versatile General Purpose applications for maximum usability Interface: PWM Voltage Supply Range: 0 V ~ 5.5 V Supplier device package: 24-VQFN (4x4) Number-of-Outputs: 1 Output The Pre-Driver - Half Bridge (2). Voltage-Load range is 5.9 V ~ 45 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 5.9 V to 45 V supply voltage for reliable performance. Output voltage: 9.5 V 6 mA is 92 nA. This product is rated for 3.3 V 4.8 V load voltage for versatile use. Output current: 6 mA to 150 mA The DRV8701EVM.

DRV8701PRGET Image

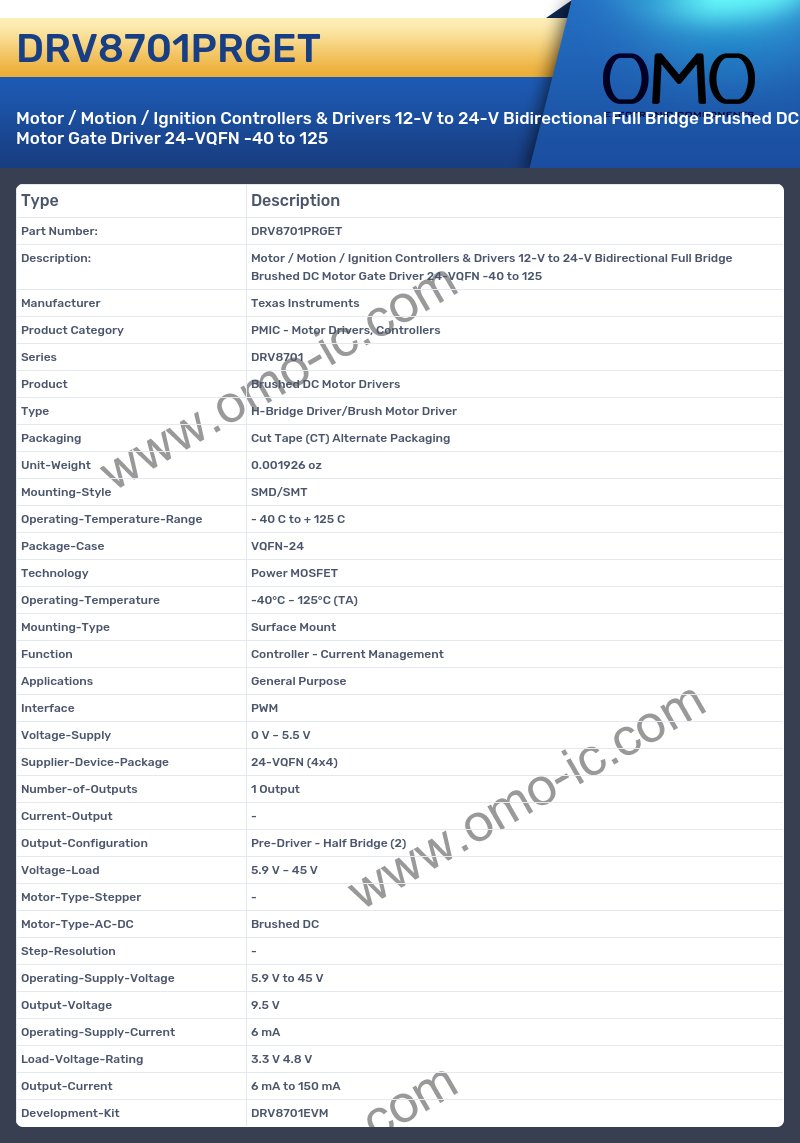

DRV8701PRGET Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Motor Drivers, Controllers
• Series DRV8701
• Product Brushed DC Motor Drivers
• Type H-Bridge Driver/Brush Motor Driver
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.001926 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case VQFN-24
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Function Controller - Current Management
• Applications General Purpose
• Interface PWM
• Voltage-Supply 0 V ~ 5.5 V
• Supplier-Device-Package 24-VQFN (4x4)
• Number-of-Outputs 1 Output
• Current-Output -
• Output-Configuration Pre-Driver - Half Bridge (2)
• Voltage-Load 5.9 V ~ 45 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Operating-Supply-Voltage 5.9 V to 45 V
• Output-Voltage 9.5 V
• Operating-Supply-Current 6 mA
• Load-Voltage-Rating 3.3 V 4.8 V
• Output-Current 6 mA to 150 mA
• Development-Kit DRV8701EVM
