EMIF06-1005N12

EMIF06-1005N12 Overview

Product belongs to the IPAD series. Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.022" (0.55mm). Micro QFN-12 Narrow RC (Pi) is the technology used. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Rated voltage range of - Versatile Data Lines for Mobile Devices applications for maximum usability Number of channels: 6 Filter order is 2nd - of 10dB for superior noise reduction 100 Ohms Resistance Channel There are two Values: R = 100 Ohms, C = 45pF (Total). ESD-Protection": " Yes

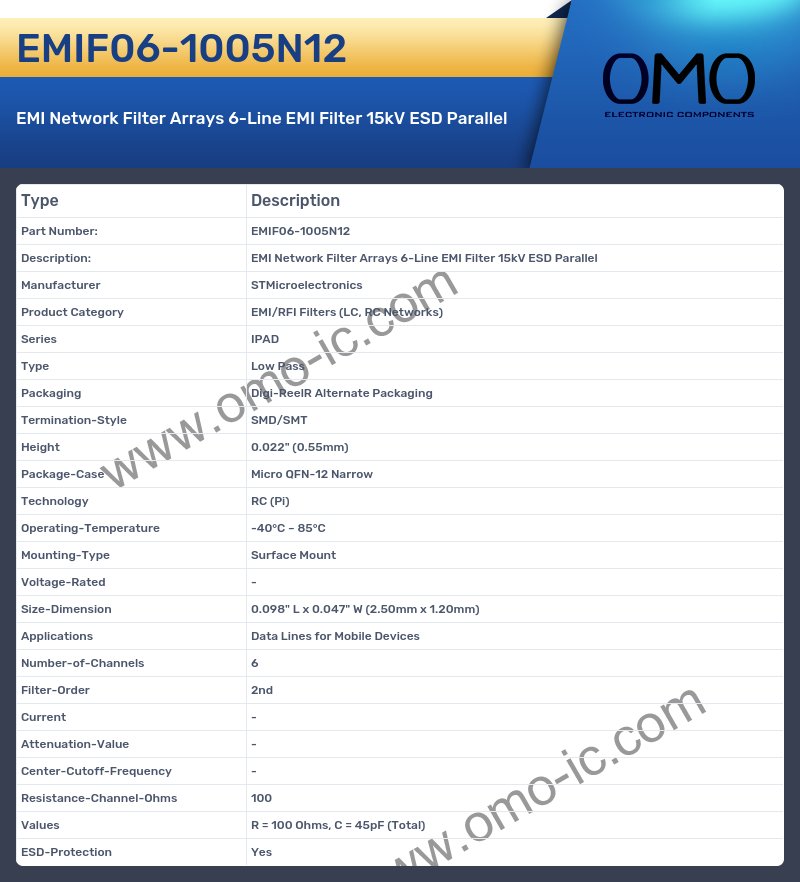

EMIF06-1005N12 Image

EMIF06-1005N12 Specifications

• Manufacturer STMicroelectronics
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series IPAD
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Height 0.022" (0.55mm)
• Package-Case Micro QFN-12 Narrow
• Technology RC (Pi)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.098" L x 0.047" W (2.50mm x 1.20mm)
• Applications Data Lines for Mobile Devices
• Number-of-Channels 6
• Filter-Order 2nd
• Current -
• Attenuation-Value -
• Center-Cutoff-Frequency -
• Resistance-Channel-Ohms 100
• Values R = 100 Ohms, C = 45pF (Total)
• ESD-Protection Yes
