EMIF08-LCD04M16

EMIF08-LCD04M16 Overview

Product belongs to the IPAD series. Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.022" (0.55mm). 16-UFDFN Exposed Pad LC (Pi) is the technology used. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Rated voltage range of - Versatile Data Lines for Mobile Devices applications for maximum usability Number of channels: 8 Filter order is 3rd -35dB @ 900MHz ~ 2GHz of 10dB for superior noise reduction 12.5 Ohms Resistance Channel There are two Values: L = 12nH, C = 18pF. ESD-Protection": " Yes

EMIF08-LCD04M16 Image

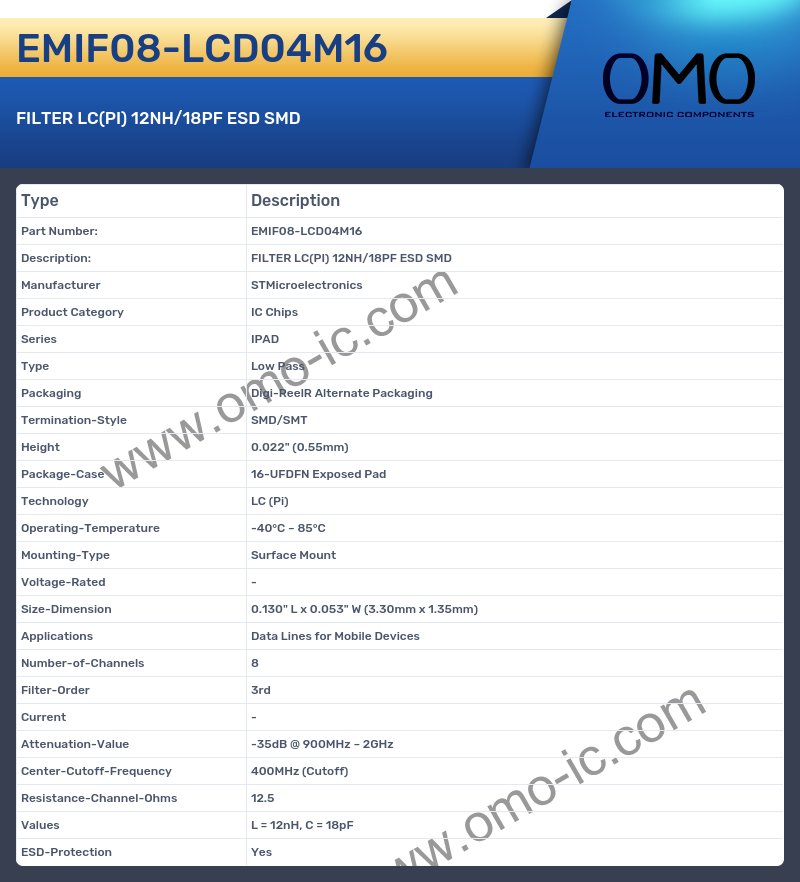

EMIF08-LCD04M16 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series IPAD
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Height 0.022" (0.55mm)
• Package-Case 16-UFDFN Exposed Pad
• Technology LC (Pi)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.130" L x 0.053" W (3.30mm x 1.35mm)
• Applications Data Lines for Mobile Devices
• Number-of-Channels 8
• Filter-Order 3rd
• Current -
• Attenuation-Value -35dB @ 900MHz ~ 2GHz
• Center-Cutoff-Frequency 400MHz (Cutoff)
• Resistance-Channel-Ohms 12.5
• Values L = 12nH, C = 18pF
• ESD-Protection Yes
