ESDA14V2BP6

ESDA14V2BP6 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. SOT-563, SOT-666 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 4 Channel Supplier device package: SOT-666 4 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 12V. The Voltage-Breakdown-Min is 14.2V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 150 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 14.2 V The Cd-Diode-Capacitance is 25 pF 12 V working voltage Polarity: Bidirectional 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 12 V supply voltage for reliable performance.

ESDA14V2BP6 Image

ESDA14V2BP6 Specifications

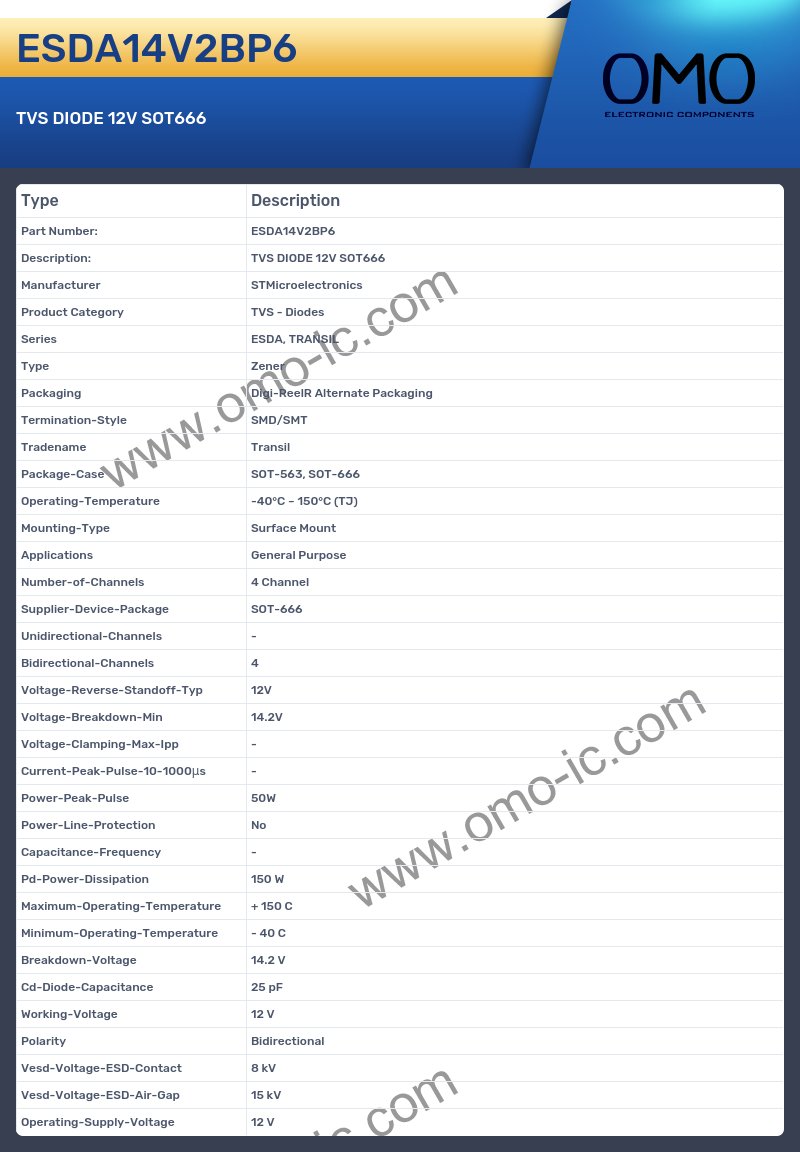

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case SOT-563, SOT-666
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 4 Channel
• Supplier-Device-Package SOT-666
• Unidirectional-Channels -
• Bidirectional-Channels 4
• Voltage-Reverse-Standoff-Typ 12V
• Voltage-Breakdown-Min 14.2V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 50W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 150 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 14.2 V
• Cd-Diode-Capacitance 25 pF
• Working-Voltage 12 V
• Polarity Bidirectional
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 12 V
