ESDA8V2-1MX2

ESDA8V2-1MX2 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. 2-UFDFN Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 1 Channel Supplier device package: 2-μQFN (1.45x1.0) - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5V. The Voltage-Breakdown-Min is 8.2V. No Power-Line-Protection 350pF @ 1MHz Capacitance-Frequency Power-off control: 500 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 8.2 V Clamping-Voltage: 18.5 V The Cd-Diode-Capacitance is 350 pF 5 V working voltage Polarity: Unidirectional 27 A of IPP, Peak Pulse, and Current 30 kV of Vesd-Voltage-ESD-Contact 30 kV Vesd-Voltage-ESD-Air-Gap

ESDA8V2-1MX2 Image

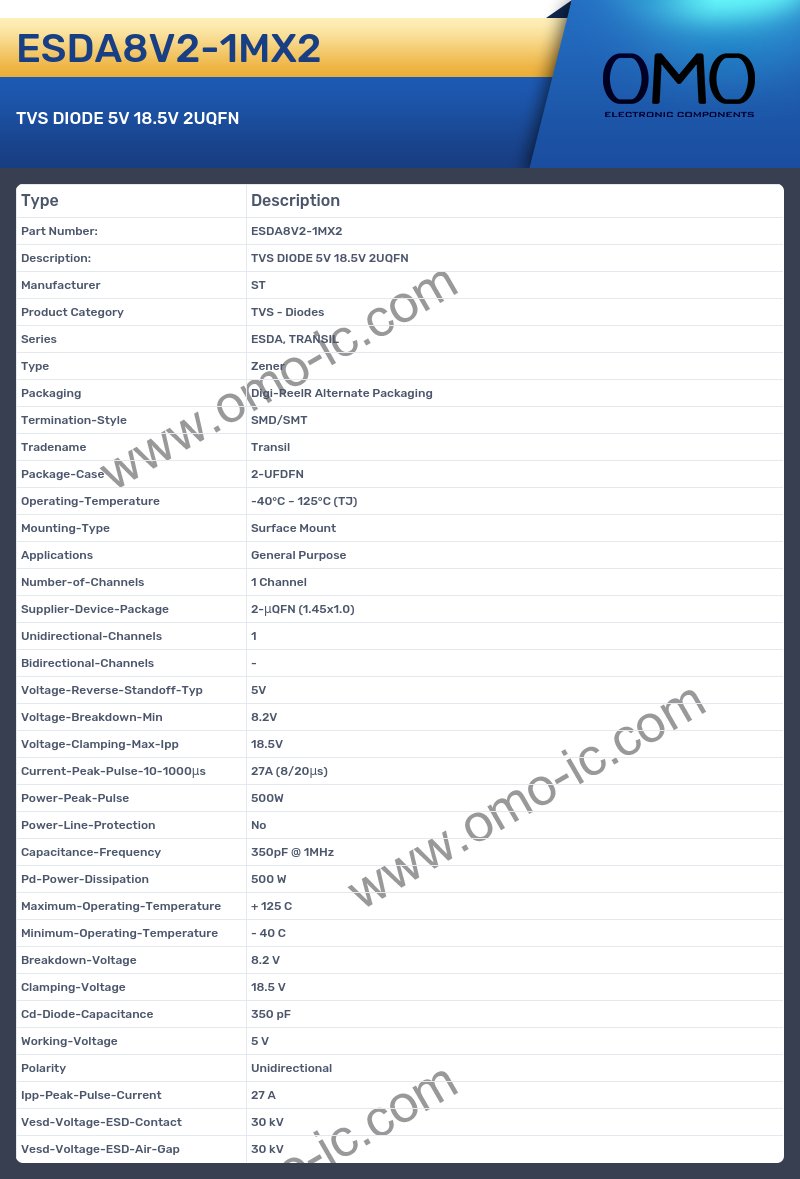

ESDA8V2-1MX2 Specifications

• Manufacturer ST
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case 2-UFDFN
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 1 Channel
• Supplier-Device-Package 2-μQFN (1.45x1.0)
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 5V
• Voltage-Breakdown-Min 8.2V
• Voltage-Clamping-Max-Ipp 18.5V
• Current-Peak-Pulse-10-1000μs 27A (8/20μs)
• Power-Peak-Pulse 500W
• Power-Line-Protection No
• Capacitance-Frequency 350pF @ 1MHz
• Pd-Power-Dissipation 500 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 8.2 V
• Clamping-Voltage 18.5 V
• Cd-Diode-Capacitance 350 pF
• Working-Voltage 5 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 27 A
• Vesd-Voltage-ESD-Contact 30 kV
• Vesd-Voltage-ESD-Air-Gap 30 kV
