ESDALC5-4BN4

ESDALC5-4BN4 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product The 4 A. This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. 4-XFDFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 4 Channel Supplier device package: 4-uQFN (1x0.8) 4 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5V. The Voltage-Breakdown-Min is 5.5V. No Power-Line-Protection 13pF @ 1MHz Capacitance-Frequency Power-off control: 60 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 11 V Clamping-Voltage: 18 V The Cd-Diode-Capacitance is 13 pF 5 V working voltage Polarity: Bidirectional 1 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap

ESDALC5-4BN4 Image

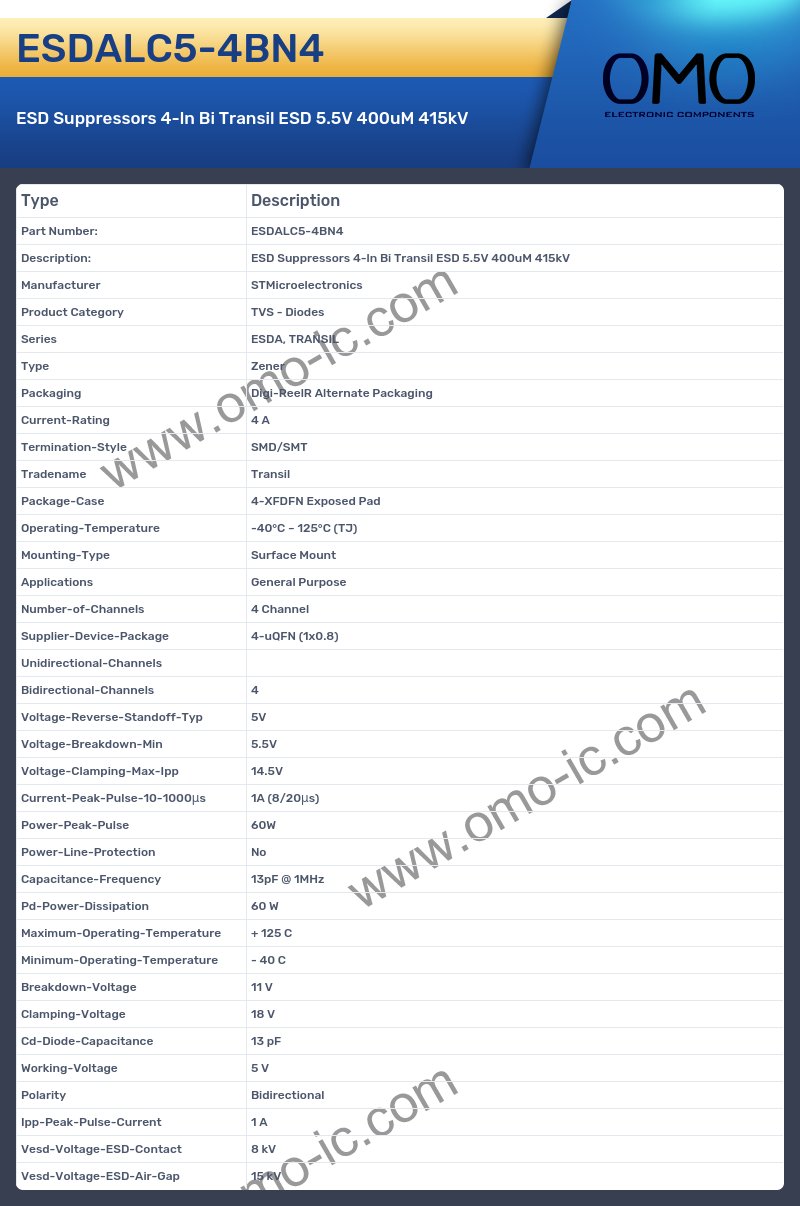

ESDALC5-4BN4 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Current-Rating 4 A
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case 4-XFDFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 4 Channel
• Supplier-Device-Package 4-uQFN (1x0.8)
• Unidirectional-Channels
• Bidirectional-Channels 4
• Voltage-Reverse-Standoff-Typ 5V
• Voltage-Breakdown-Min 5.5V
• Voltage-Clamping-Max-Ipp 14.5V
• Current-Peak-Pulse-10-1000μs 1A (8/20μs)
• Power-Peak-Pulse 60W
• Power-Line-Protection No
• Capacitance-Frequency 13pF @ 1MHz
• Pd-Power-Dissipation 60 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 11 V
• Clamping-Voltage 18 V
• Cd-Diode-Capacitance 13 pF
• Working-Voltage 5 V
• Polarity Bidirectional
• Ipp-Peak-Pulse-Current 1 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
