HVLED815PFTR

HVLED815PFTR Overview

Product belongs to the HVLED815PF series. Type: AC DC Offline Switcher Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SO-16N This product's 166kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile - applications for maximum usability Supplier device package: 16-SO Number-of-Outputs: 1 Current-Output-Channel is - This product has Yes. Topology: Flyback feedback The maximum voltage supply is 23V. The minimum 11.5V required for voltage supply. Output voltage: - Dimming control is done through PWM communication. Power-off control: 0.9 W Input Voltage Range: 11.5 V to 23 V Maximum supply current: 1.7 mA

HVLED815PFTR Image

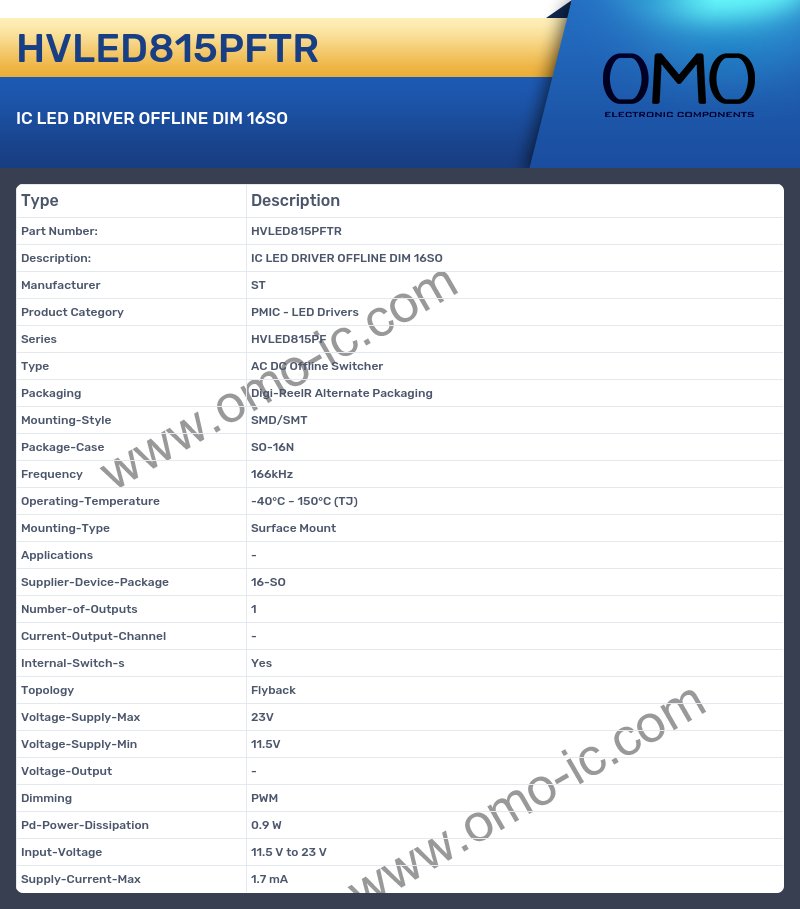

HVLED815PFTR Specifications

• Manufacturer ST
• Product Category PMIC - LED Drivers
• Series HVLED815PF
• Type AC DC Offline Switcher
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SO-16N
• Frequency 166kHz
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications -
• Supplier-Device-Package 16-SO
• Number-of-Outputs 1
• Current-Output-Channel -
• Internal-Switch-s Yes
• Topology Flyback
• Voltage-Supply-Max 23V
• Voltage-Supply-Min 11.5V
• Voltage-Output -
• Dimming PWM
• Pd-Power-Dissipation 0.9 W
• Input-Voltage 11.5 V to 23 V
• Supply-Current-Max 1.7 mA
