ISO7241CDW

ISO7241CDW Overview

Product belongs to the ISO7241C series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.014829 oz SMD/SMT Mounting-Style SOIC-16 Wide Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 3.15 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/3/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 42ns, 42ns The minimum pulse width distortion is 2.5ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. Isolation voltage of 4 kVrms The ISO723X724XEVM. Maximum supply voltage of 5 V Minimum supply voltage is 2.8 V 35 ns is 23 microseconds. This product features 3 Channel Forward-Channels for simple connectivity. The product has 1 Channel for reverse communication.

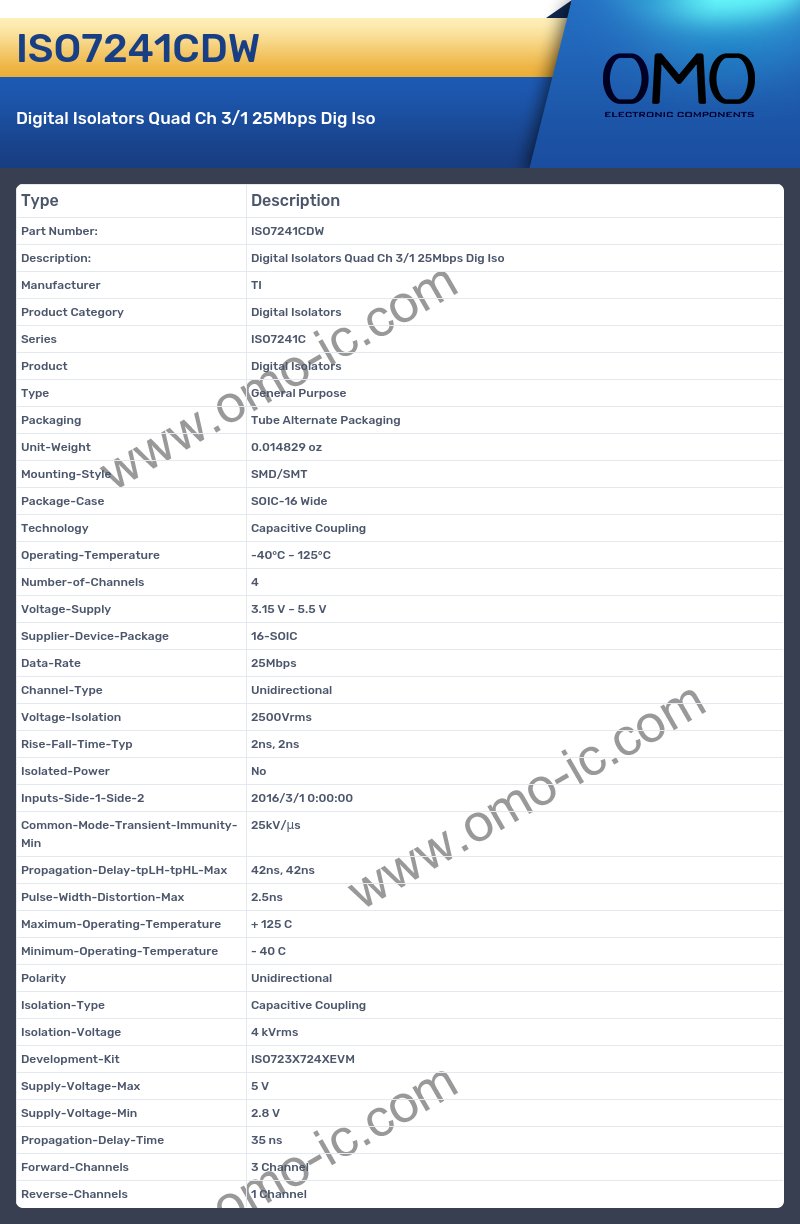

ISO7241CDW Image

ISO7241CDW Specifications

• Manufacturer TI
• Product Category Digital Isolators
• Series ISO7241C
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.014829 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 3.15 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 25Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 2ns, 2ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/3/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 42ns, 42ns
• Pulse-Width-Distortion-Max 2.5ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Isolation-Voltage 4 kVrms
• Development-Kit ISO723X724XEVM
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 2.8 V
• Propagation-Delay-Time 35 ns
• Forward-Channels 3 Channel
• Reverse-Channels 1 Channel
