L78L09ACD13TR

L78L09ACD13TR Overview

Product belongs to the L78L09AC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: 0°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SO Up to 30V voltage input Number-of-Outputs: 1 Output voltage: 9V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Polarity: Positive Output voltage: 9 V Maximum Input Voltage: 30 V Output current: 100 mA The product's 30 V is 5.1 V. Load regulation is 80 mV. This product's 225 mV is 0.01 %/V.

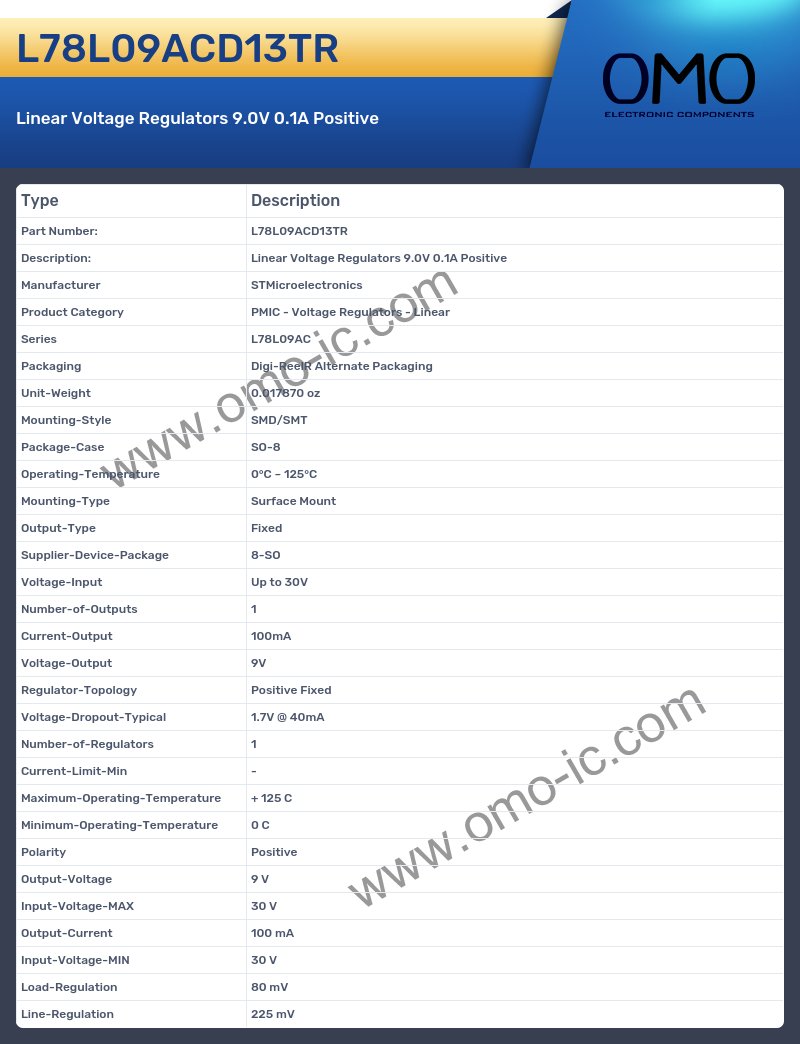

L78L09ACD13TR Image

L78L09ACD13TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series L78L09AC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SO
• Voltage-Input Up to 30V
• Number-of-Outputs 1
• Current-Output 100mA
• Voltage-Output 9V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1.7V @ 40mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature 0 C
• Polarity Positive
• Output-Voltage 9 V
• Input-Voltage-MAX 30 V
• Output-Current 100 mA
• Input-Voltage-MIN 30 V
• Load-Regulation 80 mV
• Line-Regulation 225 mV
