L9942XP1TR

L9942XP1TR Overview

Product belongs to the L9942 series. This product is categorized as Stepper Motor Controllers / Drivers Type: Stepper Motor Controller Digi-ReelR Alternate Packaging is the packaging method for this product Through Hole Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications PowerSSO-24 DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile Automotive applications for maximum usability Interface: SPI Voltage Supply Range: 3 V ~ 5.3 V Supplier device package: PowerSSO-24 Exposed Bottom Pad The Half Bridge (4). Voltage-Load range is 7 V ~ 20 V. - motor type is used for high-performance and efficient operation. This product operates at a 13.5 V supply voltage for reliable performance. 20 mA is 92 nA.

L9942XP1TR Image

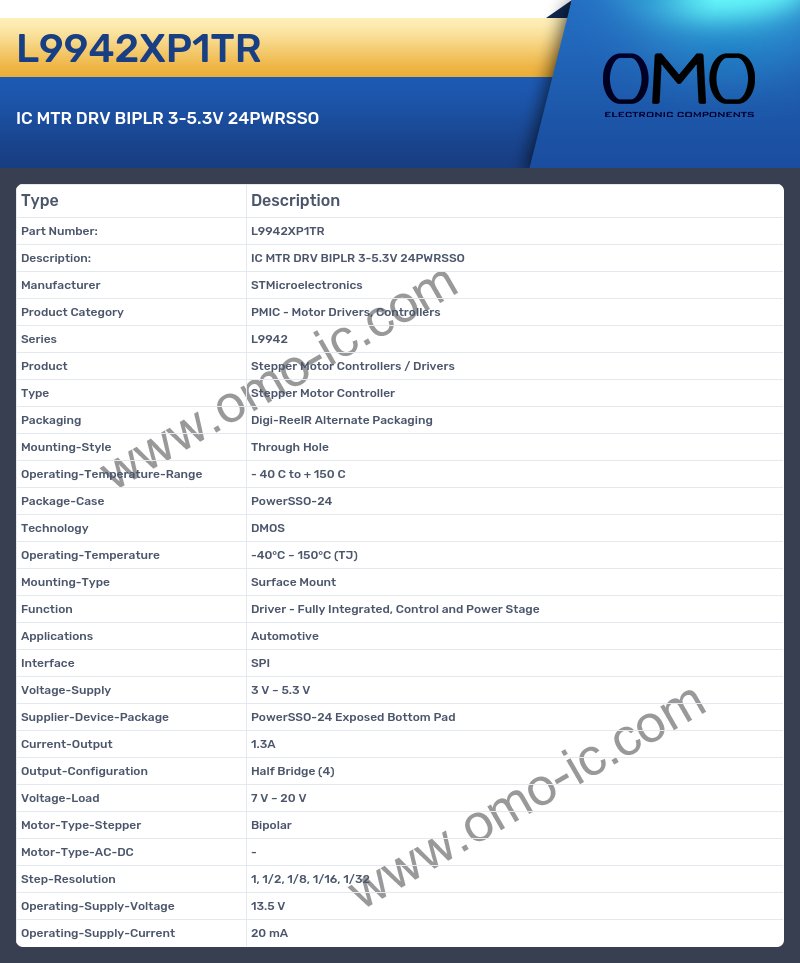

L9942XP1TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L9942
• Product Stepper Motor Controllers / Drivers
• Type Stepper Motor Controller
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case PowerSSO-24
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications Automotive
• Interface SPI
• Voltage-Supply 3 V ~ 5.3 V
• Supplier-Device-Package PowerSSO-24 Exposed Bottom Pad
• Current-Output 1.3A
• Output-Configuration Half Bridge (4)
• Voltage-Load 7 V ~ 20 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC -
• Step-Resolution 1, 1/2, 1/8, 1/16, 1/32
• Operating-Supply-Voltage 13.5 V
• Operating-Supply-Current 20 mA
