L9958 Overview

Product belongs to the L9958 series. Tube is the packaging method for this product 16-PowerBSOP (0.370", 9.40mm Width) CMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: SPI Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: PowerSO-16 The Half Bridge (2). Voltage-Load range is 4 V ~ 28 V. Brushed DC motor type is used for high-performance and efficient operation.

L9958 Image

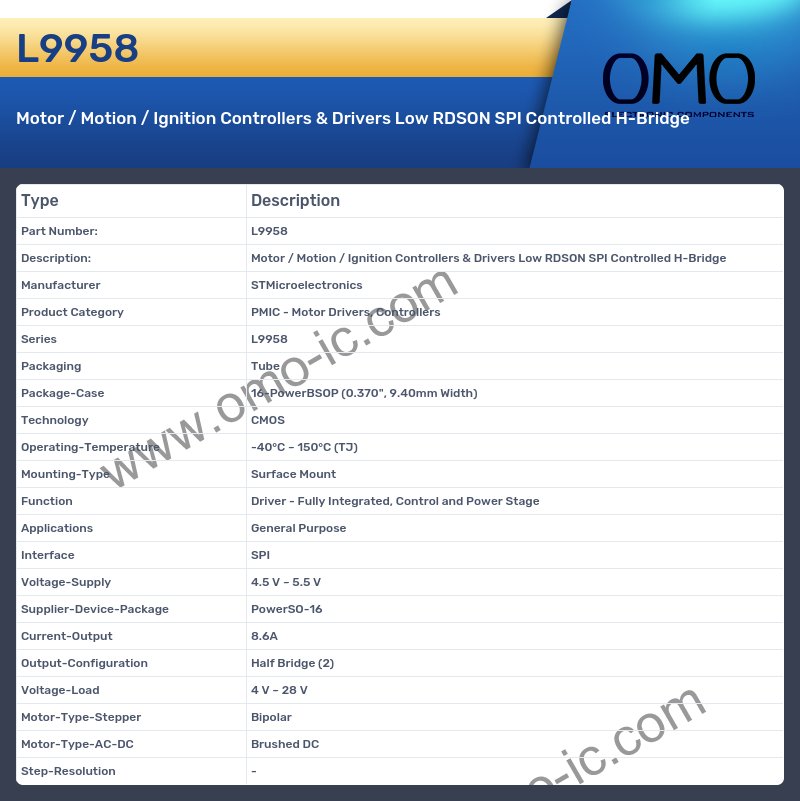

L9958 Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Motor Drivers, Controllers
• Series L9958
• Packaging Tube
• Package-Case 16-PowerBSOP (0.370", 9.40mm Width)
• Technology CMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface SPI
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package PowerSO-16
• Current-Output 8.6A
• Output-Configuration Half Bridge (2)
• Voltage-Load 4 V ~ 28 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
