L99SD01TR-E Overview

Product belongs to the L99SD01 series. Digi-ReelR Alternate Packaging is the packaging method for this product 36-PowerBFSOP (0.295", 7.50mm Width) Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Solenoids applications for maximum usability Interface: I2C, PWM Voltage Supply Range: 6 V ~ 28 V Supplier device package: PowerSSO-36 Current-Output-Channel is 14A The Half Bridge. This product supports a Inductive of Inductive, Capacitive, Resistive for versatile applications. The 150 mOhm LS (Max), 150 mOhm HS (Max). The product's - is 4A. Voltage-Load range is 45V (Max).

L99SD01TR-E Image

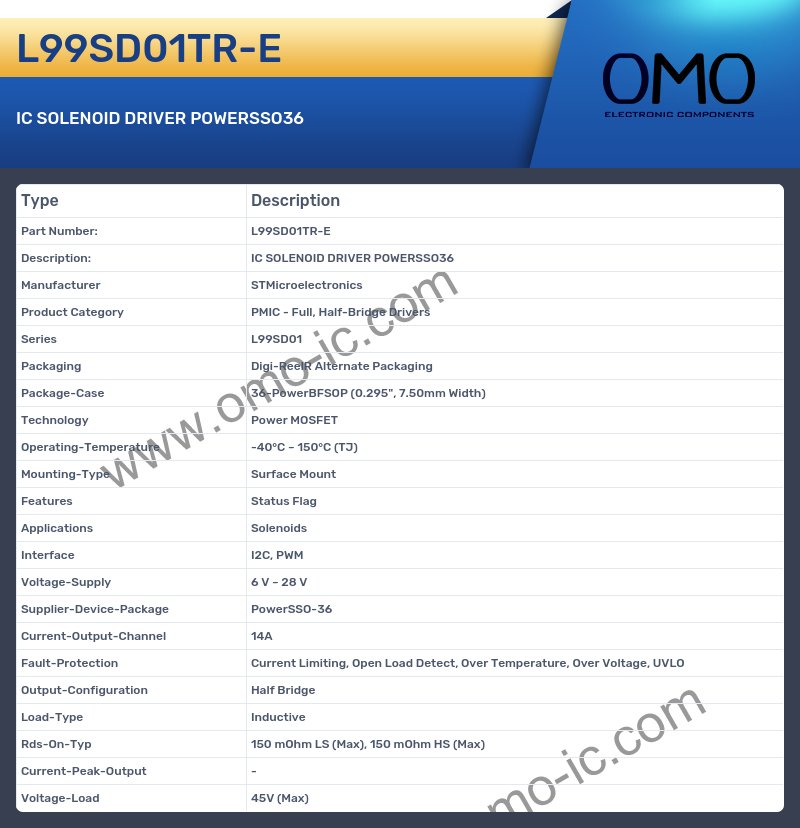

L99SD01TR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Full, Half-Bridge Drivers
• Series L99SD01
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 36-PowerBFSOP (0.295", 7.50mm Width)
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Features Status Flag
• Applications Solenoids
• Interface I2C, PWM
• Voltage-Supply 6 V ~ 28 V
• Supplier-Device-Package PowerSSO-36
• Current-Output-Channel 14A
• Fault-Protection Current Limiting, Open Load Detect, Over Temperature, Over Voltage, UVLO
• Output-Configuration Half Bridge
• Load-Type Inductive
• Rds-On-Typ 150 mOhm LS (Max), 150 mOhm HS (Max)
• Current-Peak-Output -
• Voltage-Load 45V (Max)
