LDCL015MR

LDCL015MR Overview

Product belongs to the LD59015XX series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: SOT-23-5 1.8 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.8 V ~ 5.5 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: Adj Maximum Input Voltage: 5.5 V Output current: 150 mA Load regulation is 0.003 % / mA. The voltage regulation accuracy of this product is 2 %. The 50 mV. The maximum 100 mV is 360 mV.

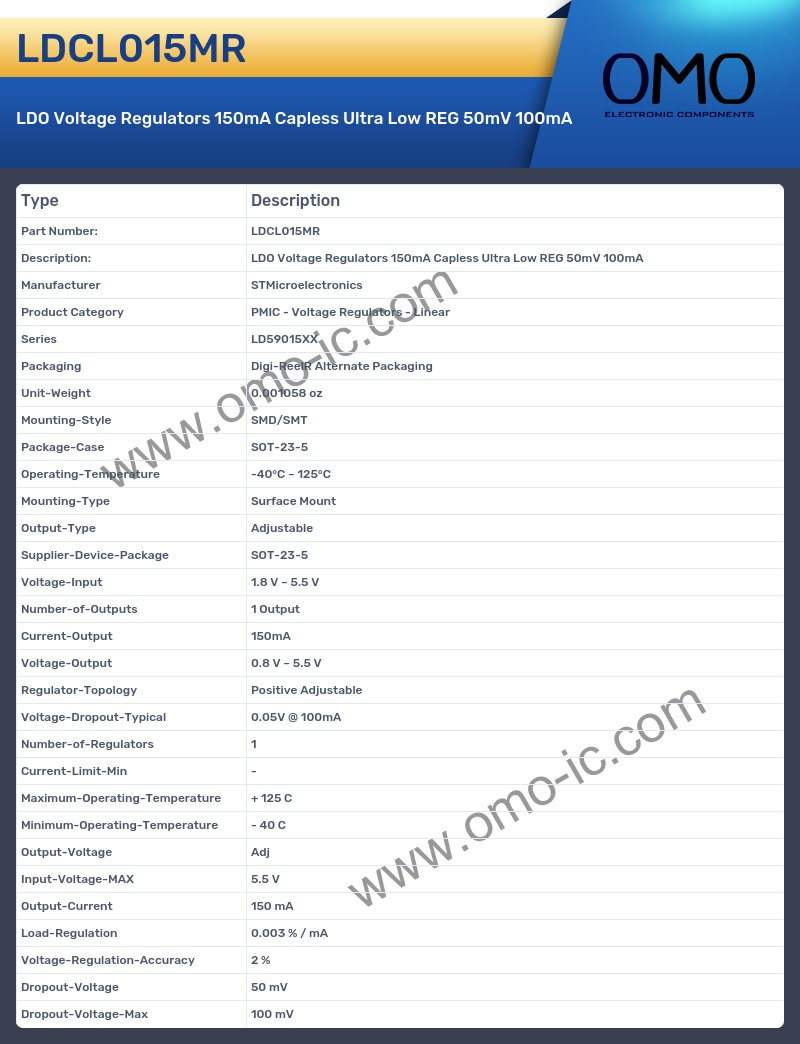

LDCL015MR Image

LDCL015MR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LD59015XX
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package SOT-23-5
• Voltage-Input 1.8 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 0.8 V ~ 5.5 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.05V @ 100mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage Adj
• Input-Voltage-MAX 5.5 V
• Output-Current 150 mA
• Load-Regulation 0.003 % / mA
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage 50 mV
• Dropout-Voltage-Max 100 mV
