LDK130PU25R

LDK130PU25R Overview

Product belongs to the LDK130P series. This product is categorized as LDO Regulators Type: Low Quiescent Current Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-EP-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-DFN (1.2x1.3) Tolerance of 2 % Up to 5.5V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.5 V 70 uA is 92 nA. Maximum Input Voltage: 5.5 V Output current: 300 mA The product's 1.9 V is 5.1 V. Load regulation is 0.006 % / mA. The voltage regulation accuracy of this product is 2 %. The 100 mV. The maximum 400 mV is 360 mV. This product's 0.05 %/V is 0.01 %/V. The product's 55 dB is -20 dB. This product has an - of 2.7 V to 5.5 V.

LDK130PU25R Image

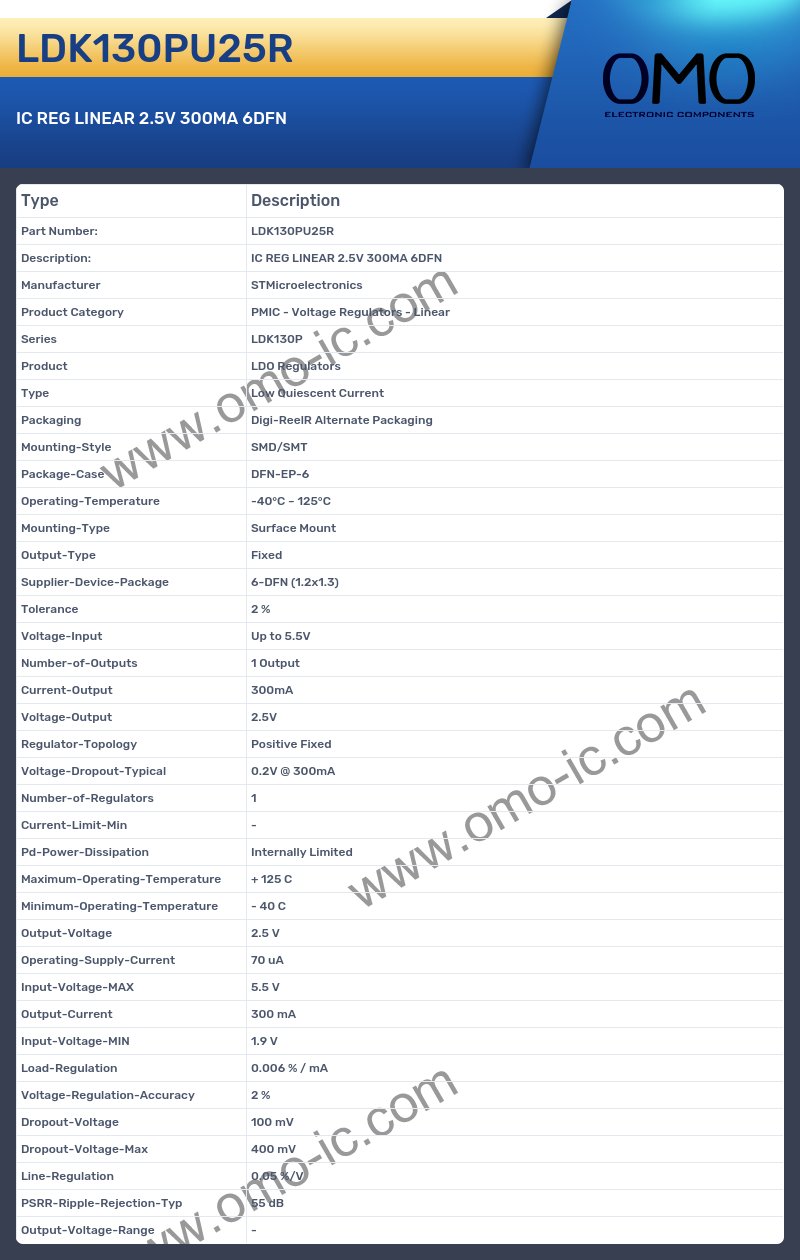

LDK130PU25R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LDK130P
• Product LDO Regulators
• Type Low Quiescent Current
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-EP-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-DFN (1.2x1.3)
• Tolerance 2 %
• Voltage-Input Up to 5.5V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.2V @ 300mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.5 V
• Operating-Supply-Current 70 uA
• Input-Voltage-MAX 5.5 V
• Output-Current 300 mA
• Input-Voltage-MIN 1.9 V
• Load-Regulation 0.006 % / mA
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage 100 mV
• Dropout-Voltage-Max 400 mV
• Line-Regulation 0.05 %/V
• PSRR-Ripple-Rejection-Typ 55 dB
• Output-Voltage-Range -
