LDK715M42R

LDK715M42R Overview

Product belongs to the LDK715M series. This product is categorized as LDO Regulators Type: High Input Voltage LDO Linear Regulator Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001319 oz SMD/SMT Mounting-Style DFN-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 24V voltage input Number-of-Outputs: 1 Output Output voltage: 4.2V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 4.2 V 5 uA is 92 nA. Maximum Input Voltage: 24 V Output current: 85 mA The product's 4.3 V is 5.1 V. Load regulation is 0.002 % / mA. The voltage regulation accuracy of this product is 1 %. The maximum 1 V is 360 mV. This product's 0.001 % / V is 0.01 %/V.

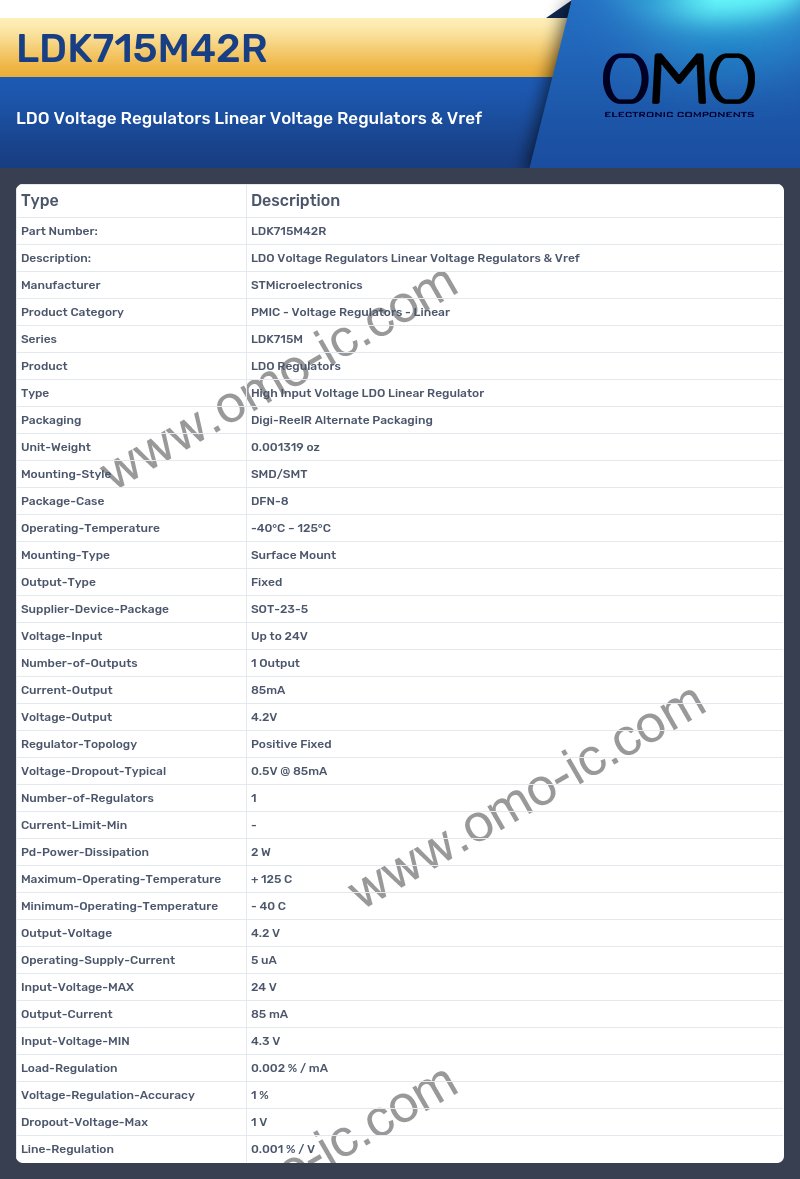

LDK715M42R Image

LDK715M42R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LDK715M
• Product LDO Regulators
• Type High Input Voltage LDO Linear Regulator
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001319 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 24V
• Number-of-Outputs 1 Output
• Current-Output 85mA
• Voltage-Output 4.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.5V @ 85mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 2 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 4.2 V
• Operating-Supply-Current 5 uA
• Input-Voltage-MAX 24 V
• Output-Current 85 mA
• Input-Voltage-MIN 4.3 V
• Load-Regulation 0.002 % / mA
• Voltage-Regulation-Accuracy 1 %
• Dropout-Voltage-Max 1 V
• Line-Regulation 0.001 % / V
